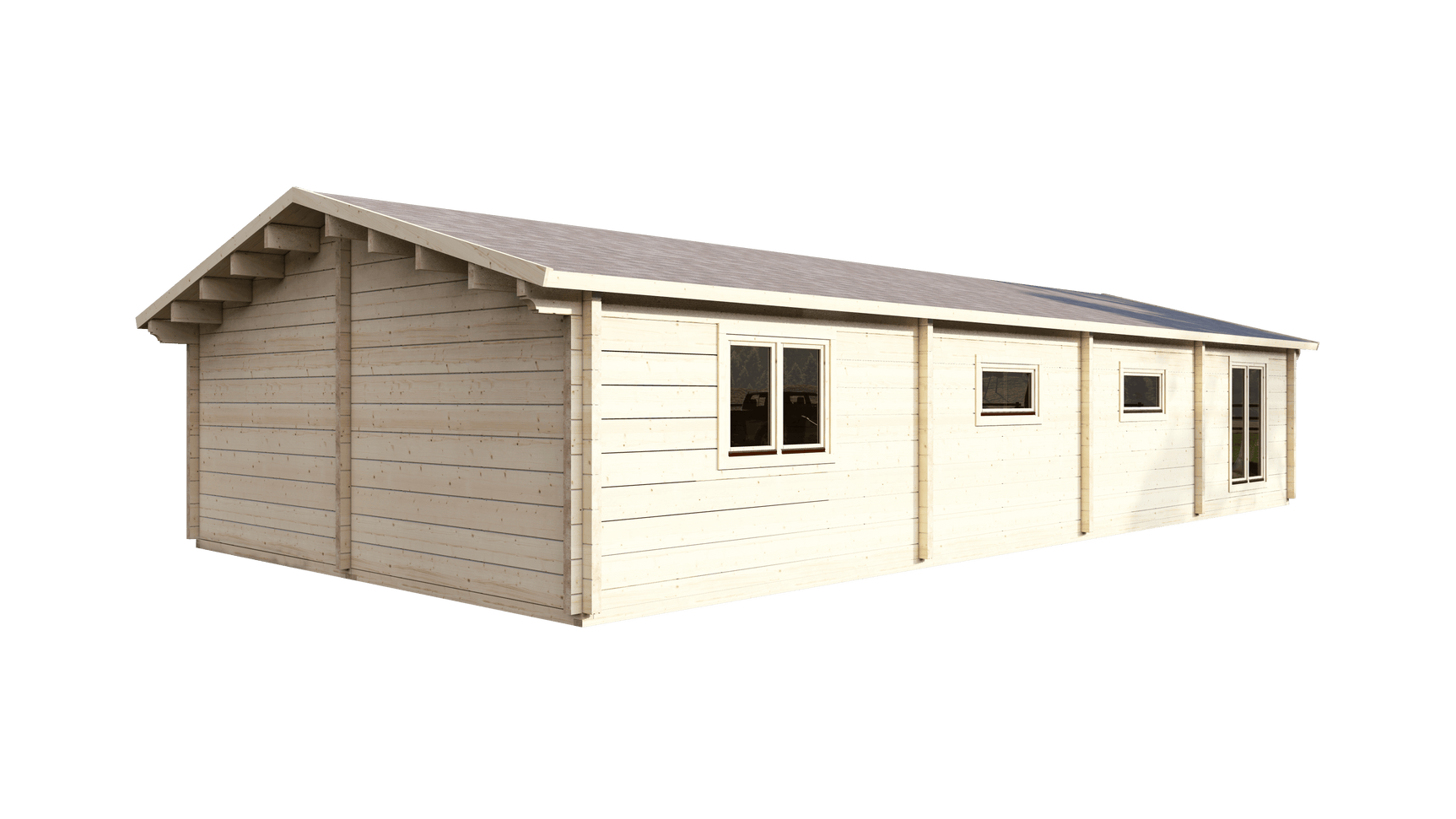

Clyde 3 Bed Lodge | 14x6.8m

The Family Home: The Clyde 3-Bed Lodge

Named after a river famous for engineering and industry, the Clyde 14x6.8m Lodge is a powerhouse of residential timber construction. This model is specifically designed for those requiring a three-bedroom layout without compromising on living space.

With an internal area of 87.5 square metres, the Clyde utilises its extra width (6.8m) to accommodate three distinct sleeping areas while maintaining a generous open-plan lounge and dining zone.

Engineered for Durability

The Clyde is constructed using 88mm Glulam (Glue Laminated) logs. This premium material is essential for a building of this capacity, ensuring:

• Thermal Efficiency: The thick, laminated walls offer superior insulation.

• Structural Stability: Glulam resists the twisting and settling often associated with solid timber, keeping your home straight and true.

• Heavy Duty Foundation: The structure sits on substantial 135mm x 135mm floor bearers, providing a rigid base for the 28mm tongue and groove flooring.

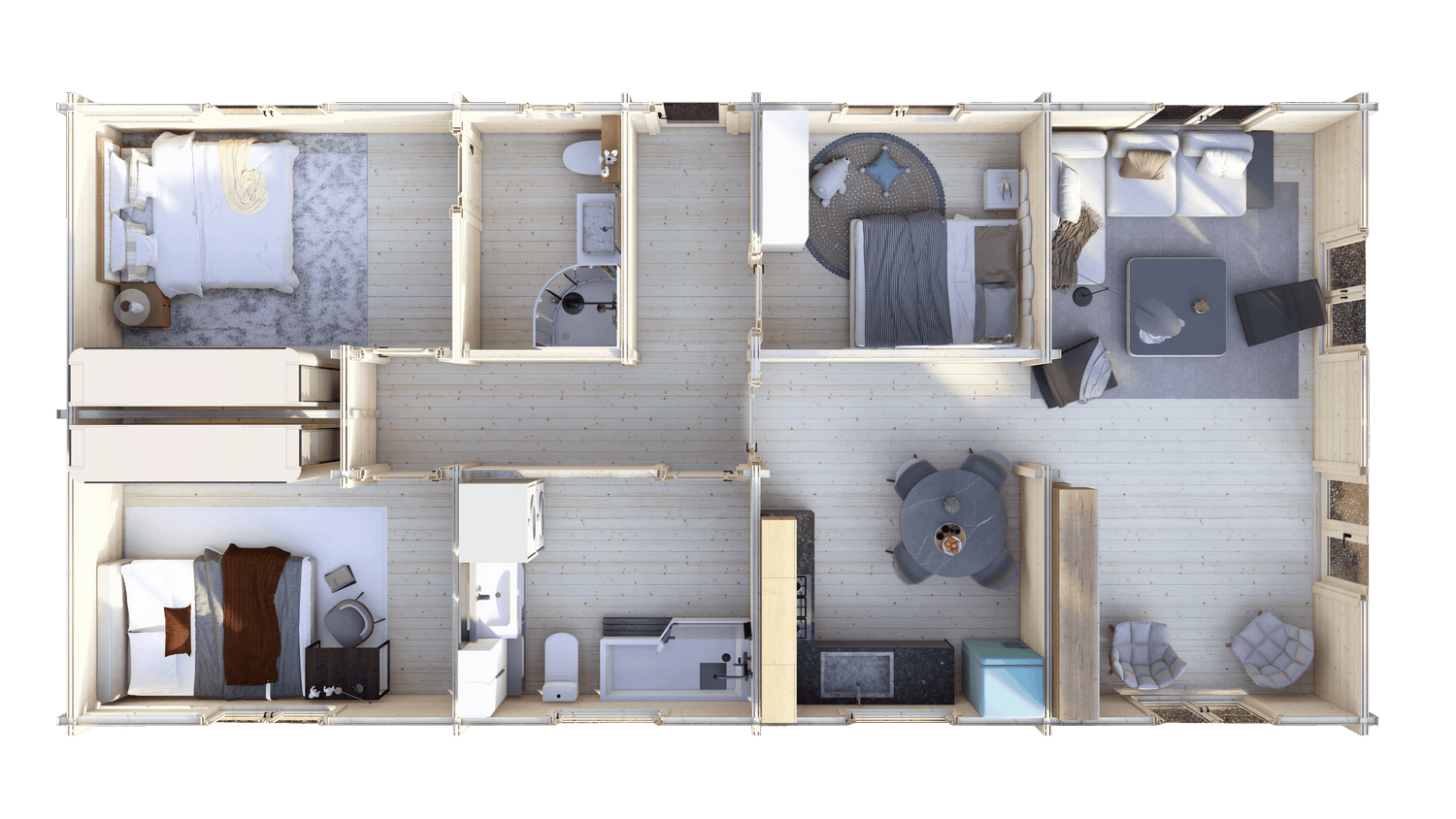

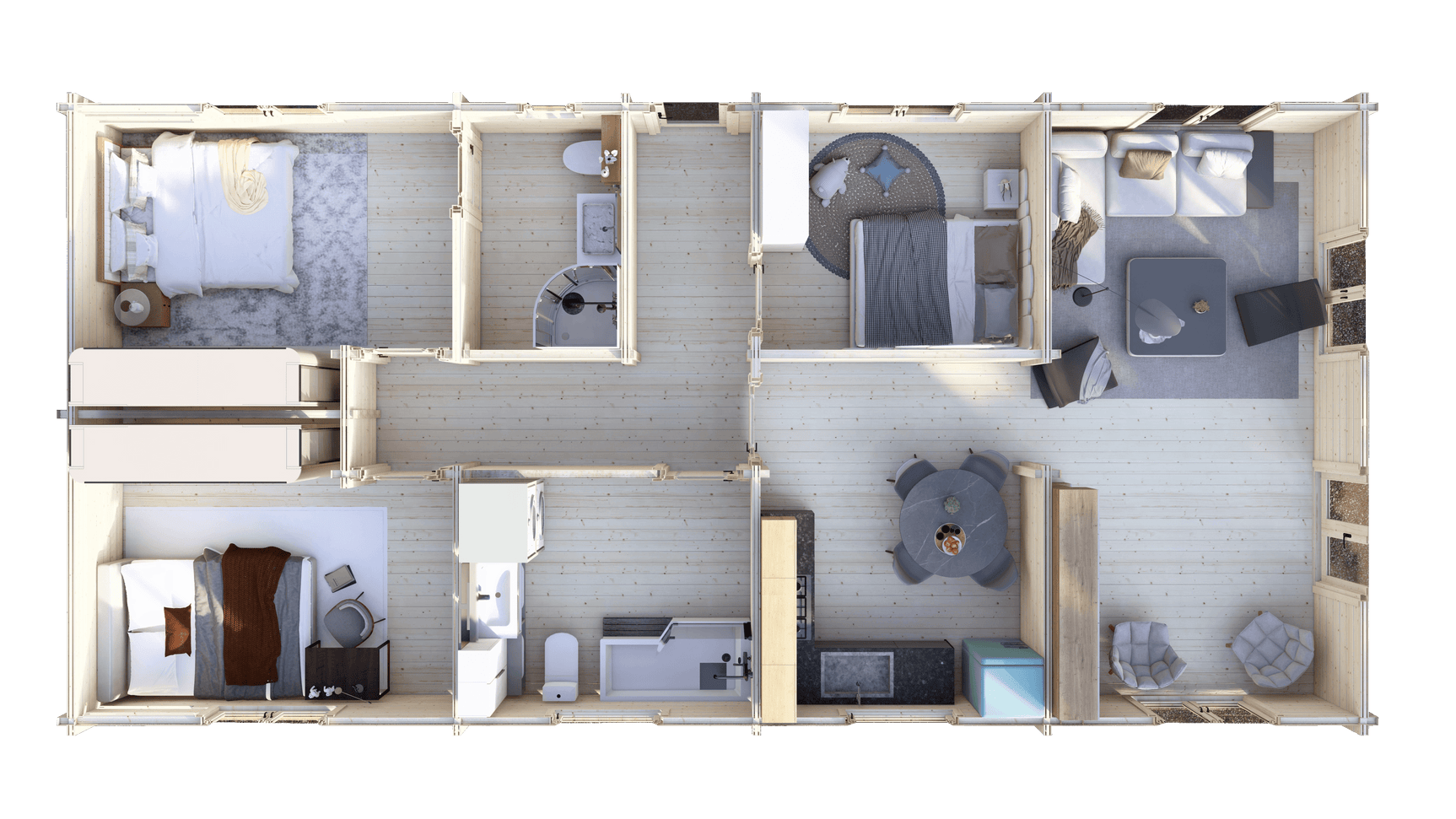

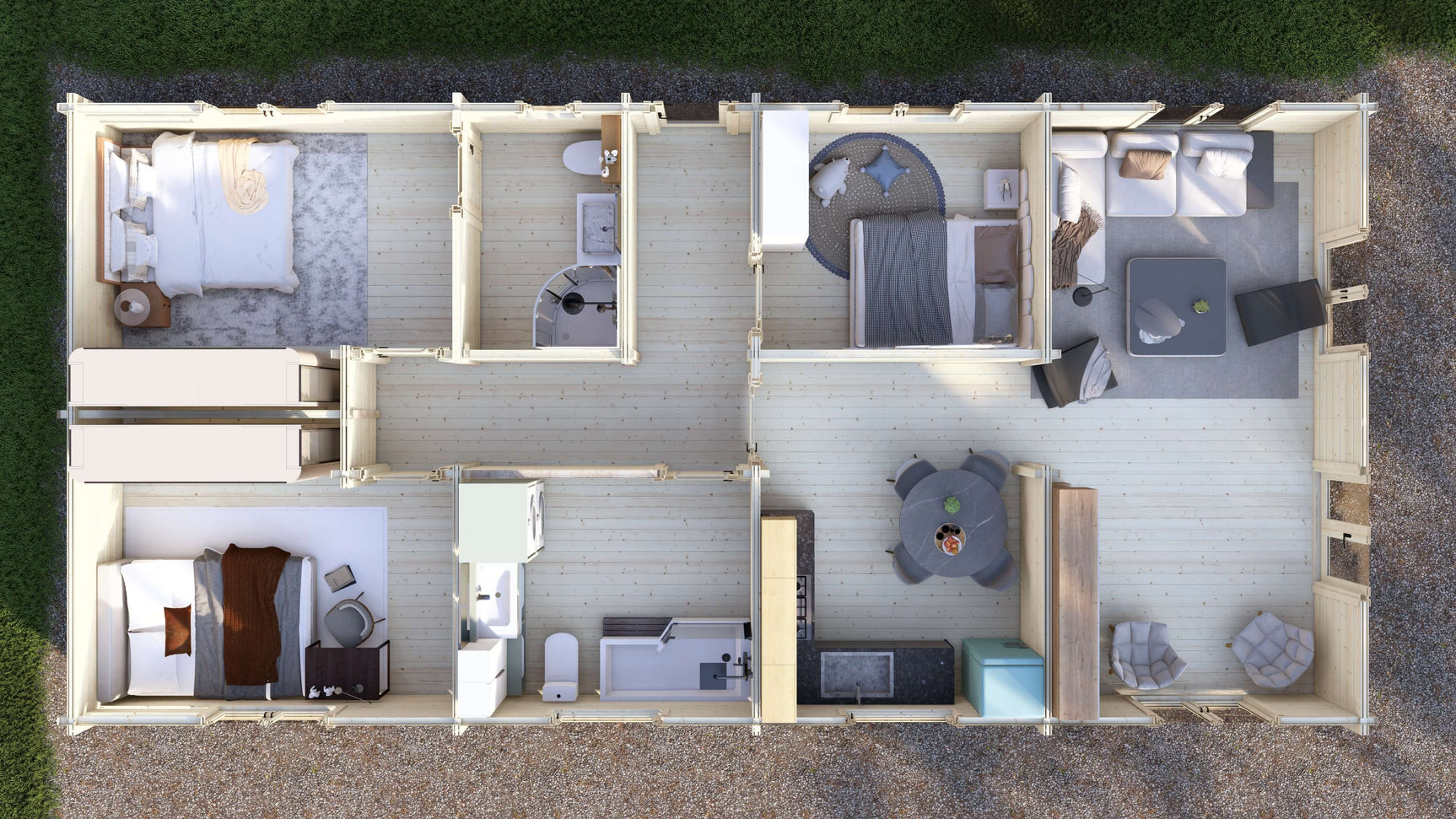

Bright and Functional Design

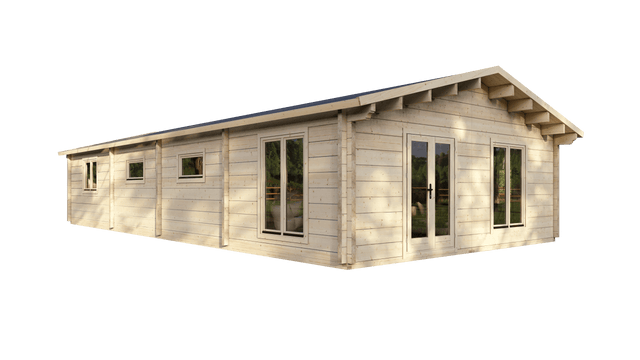

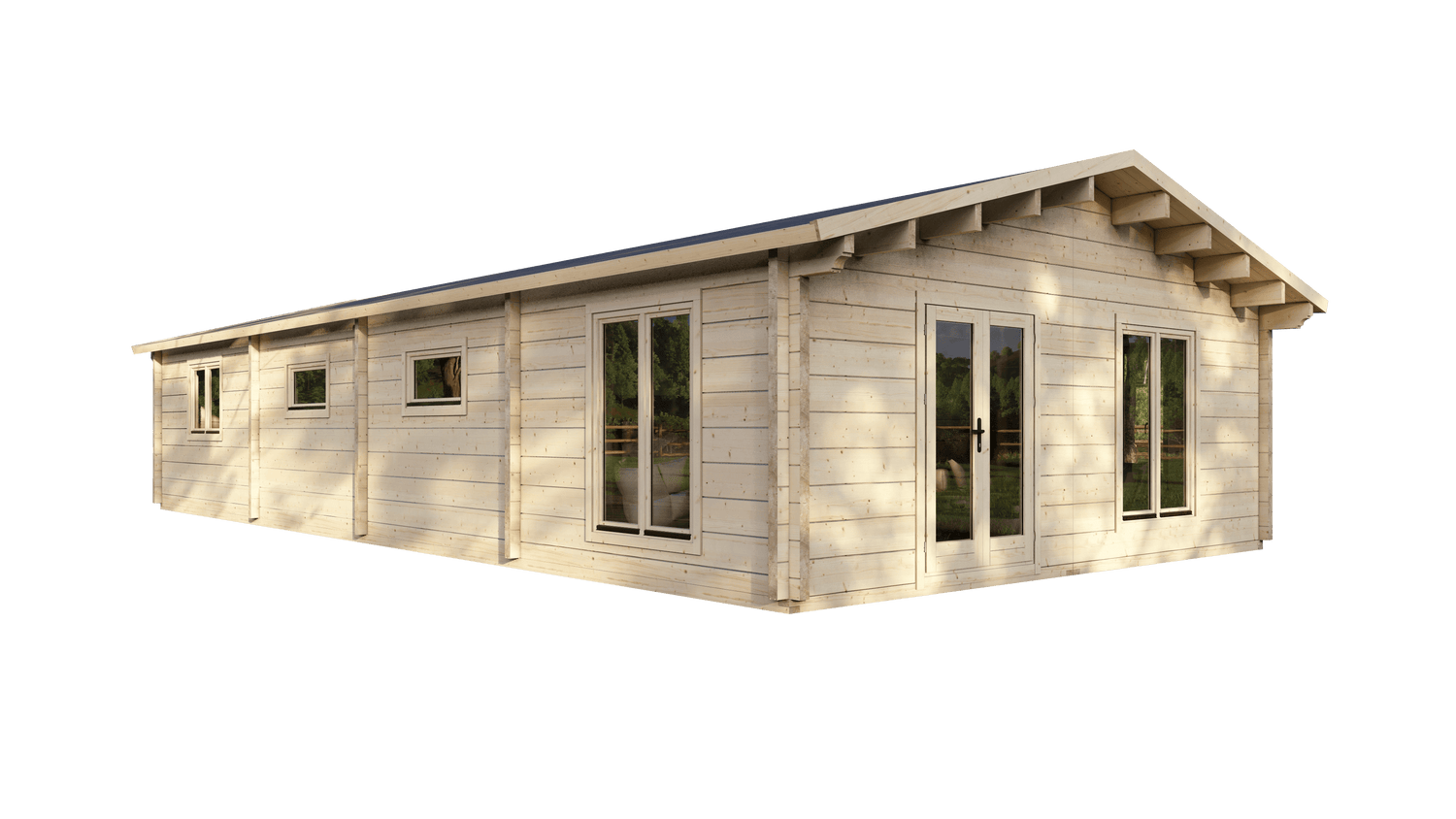

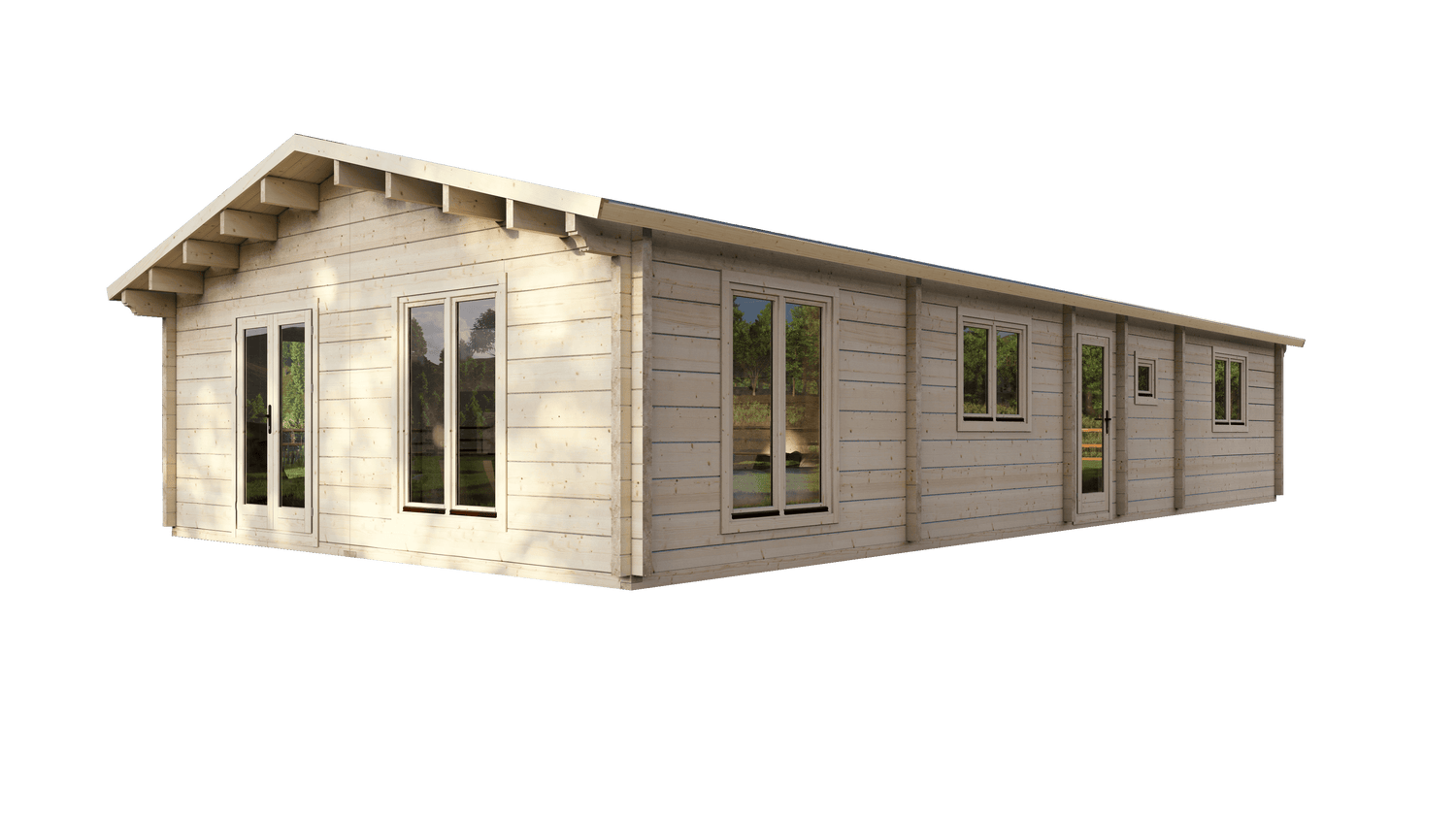

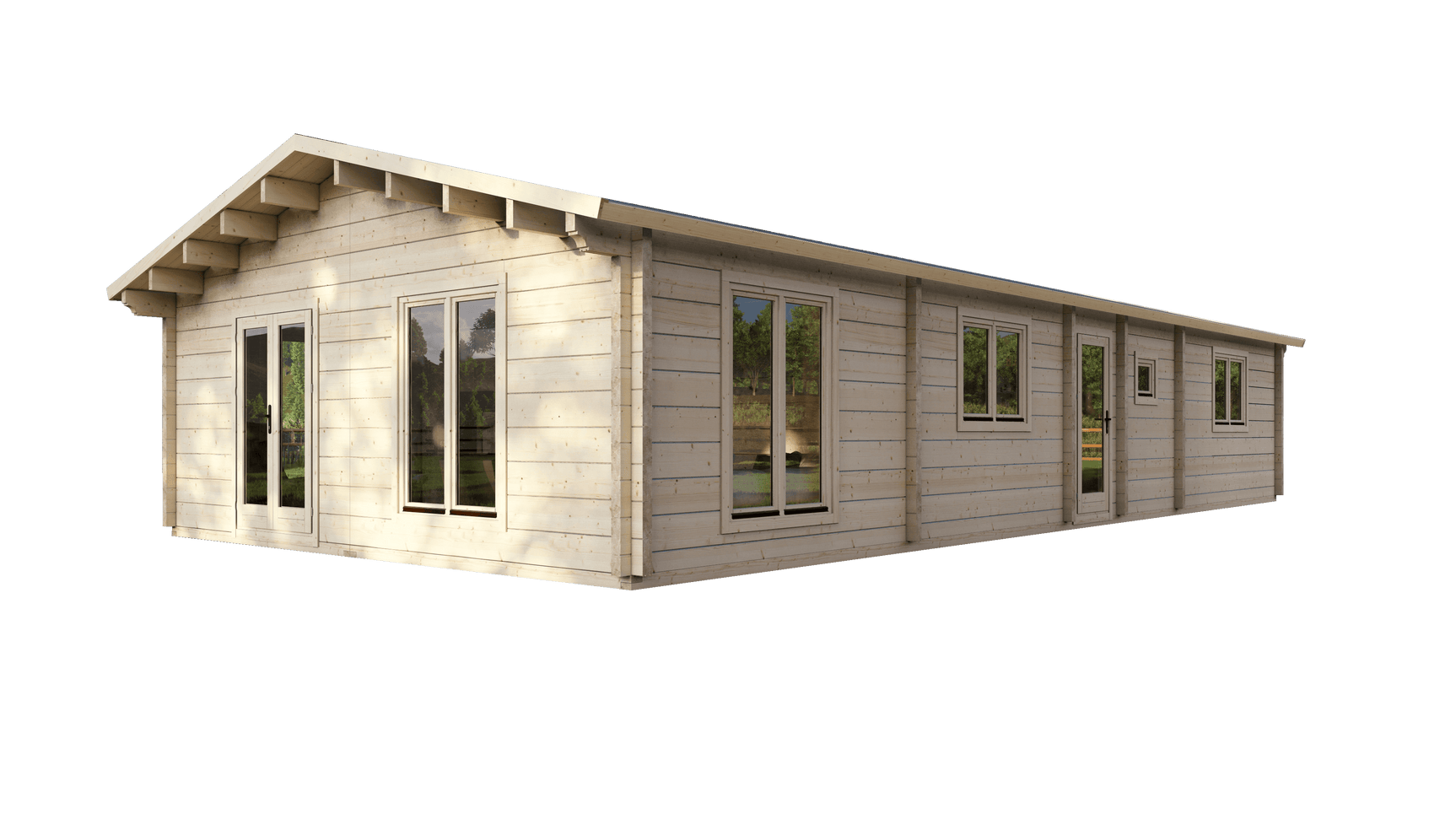

The layout is designed for practical family living. It features two external entrances: a grand double glass door for the main living area and a secondary single glass door—perfect for a boot room or side entry.

• Abundant Glazing: The lodge includes 3 large feature windows (1330x1770mm), plus specifically sized windows for kitchens (1200x600mm) and bathrooms (580x600mm).

• Defined Rooms: With 5 internal solid wood doors, the layout allows for privacy between the three bedrooms and the bathroom facilities.

• Insulation Ready: The roof features a double-structure preparation, ready to accept 100mm of insulation, ensuring the cabin meets the comfort demands of year-round occupancy.

Key Features & Specifications
Below is the detailed technical specification for the Clyde 3 Bed Lodge. Note the extra width (6.8m) which is key to fitting the 3-bedroom layout comfortably.

Dimensions & Area

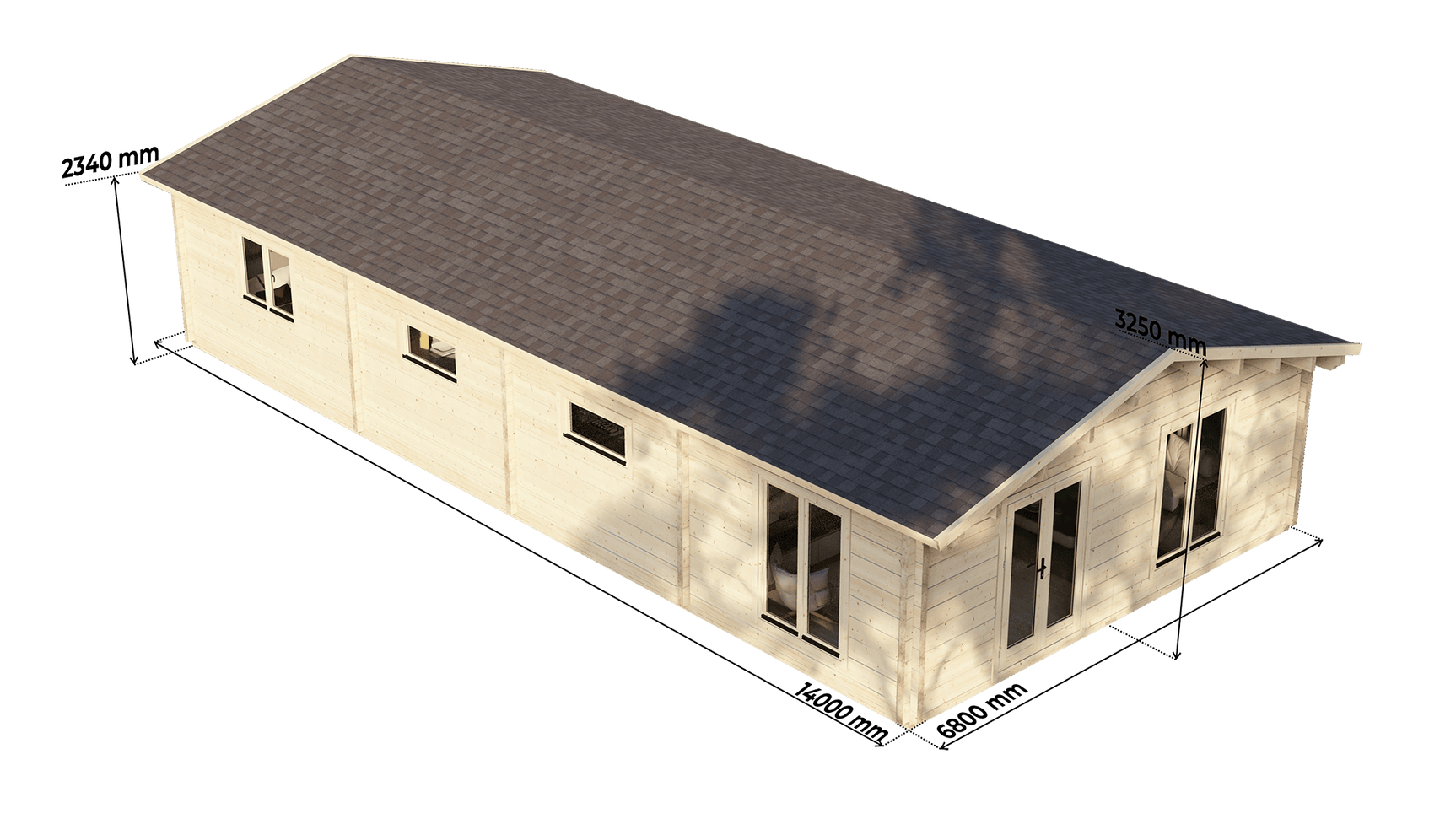

Overall Dimensions: 6800 mm x 14000 mm (6.8m x 14m)
Internal Dimensions: 6424 mm x 13624 mm
Total Inside Area: 87.5 m² (Family Residential Size)
Sidewall Height: 2340 mm
Ridge Height: 3250 mm

Construction Materials

Wall Logs: 88mm Glulam (Superior stability)
Internal Partition Walls: 88mm Glulam
Floor Bearers: Heavy Duty 135mm x 135mm
Floorboards: 28mm Tongue and Groove

Roof Structure

Roof Pitch: 15.20°
Roof Purlins: 88mm x 260mm (7 Units)
Roof Area: 124.1 m²
Insulation Prep: Double Roof Preparation (100mm Insulation gap)

Windows & Doors (Living Type - 68mm)

Window Quality: "Living Type" 68mm Frame (Double Glazed)
Large Feature Windows: 3 Units (1330x1770mm)
Standard Living Windows: 3 Units (1330x990mm)
Kitchen Windows: 2 Units (1200x600mm) – Ideal for above-counter placement
Bathroom Window: 1 Unit (580x600mm)
Main Entrance: 1 Unit Double Full Glass Door (1400x2030mm)

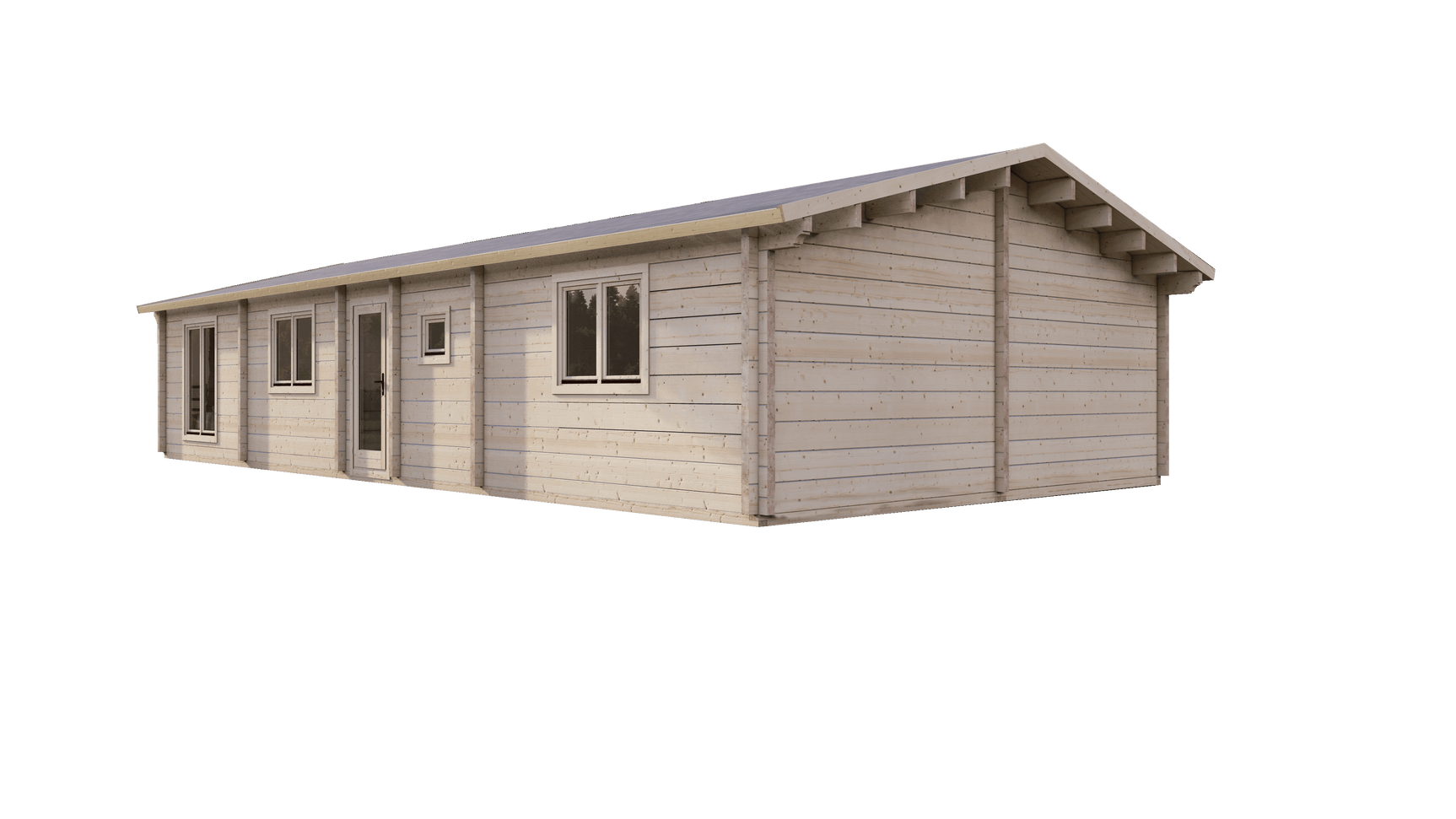

Side Entrance: 1 Unit Single Full Glass Door (900x2030mm)
Internal Doors: 5 Units Solid Wood Doors (900x2030mm)
