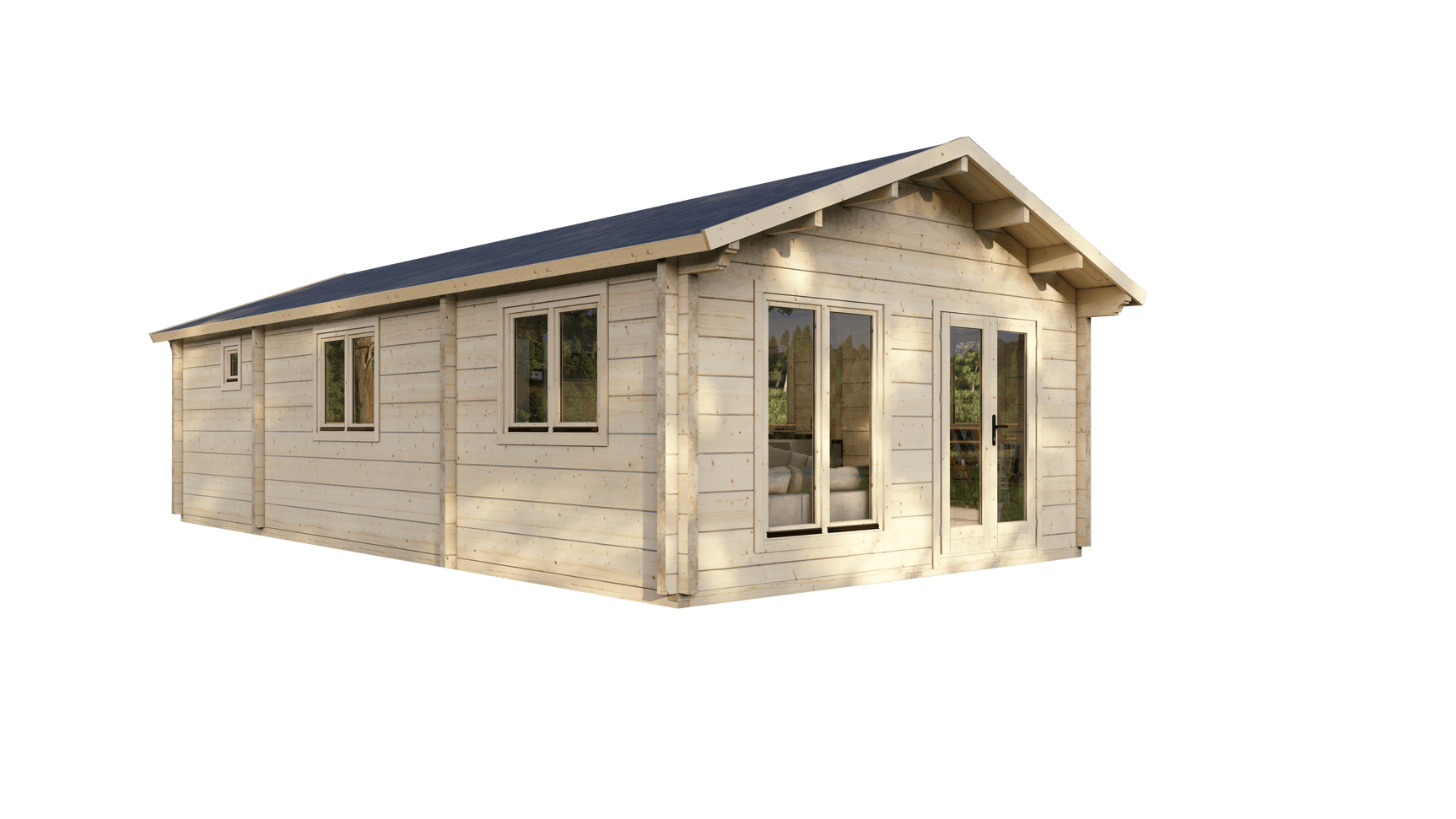

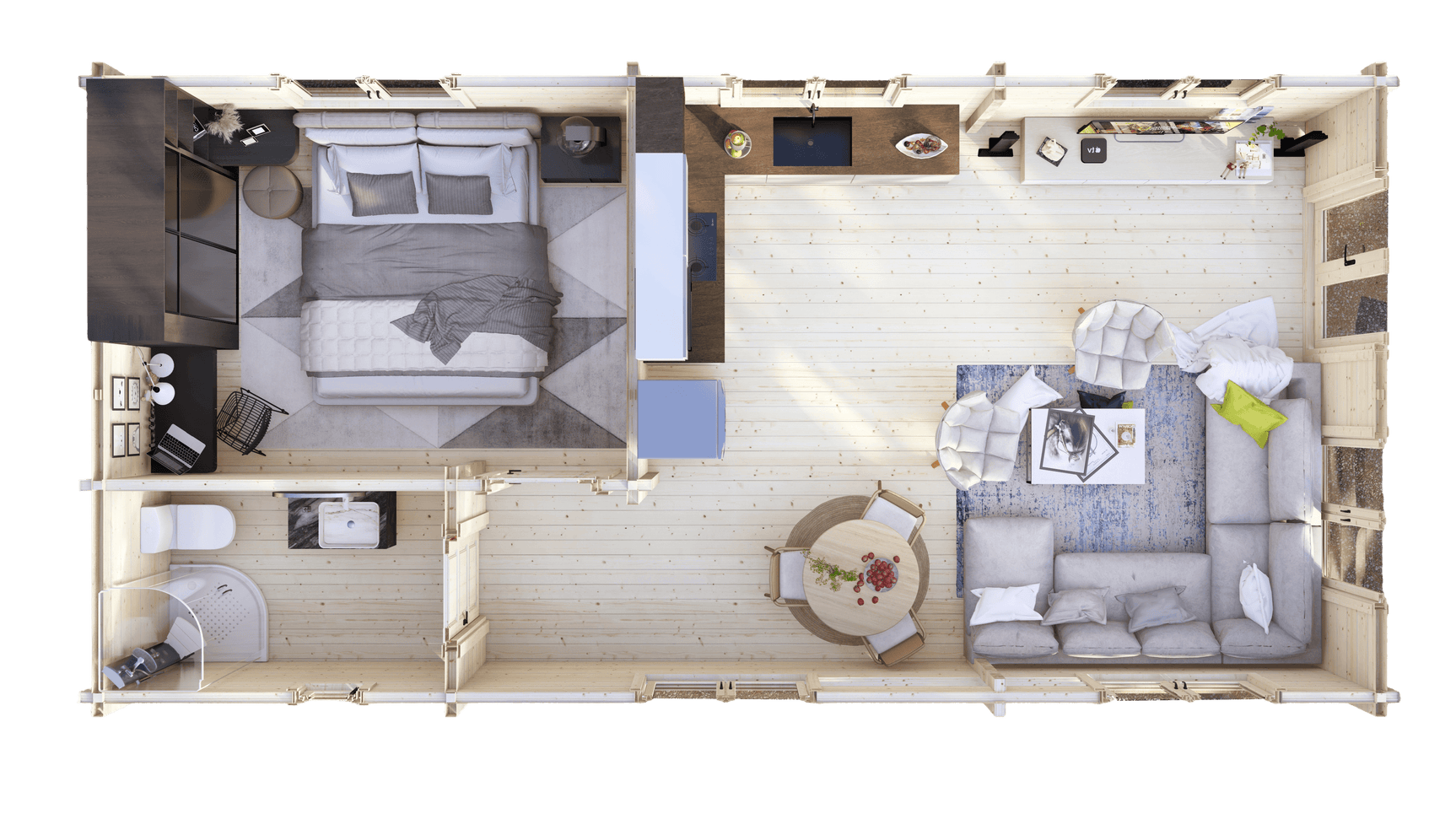

Great Ouse 1 Bed Lodge | 10x5m

Spacious Residential Living: The Great Ouse 10x5m

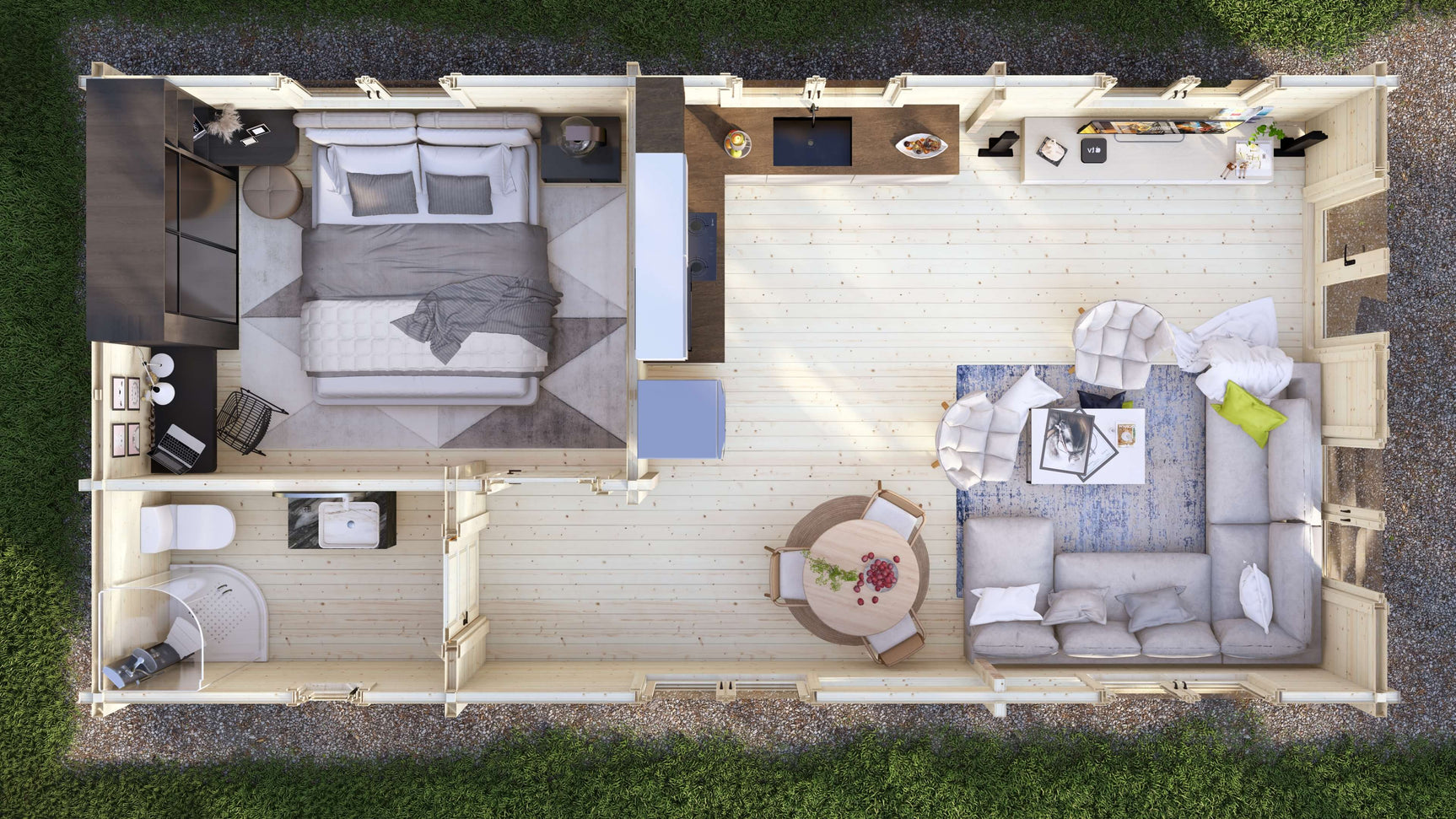

If you require more space for open-plan living, the 10x5m Great Ouse Lodge is the perfect upgrade. Offering nearly 10 square metres more floor space than the 8m model, this cabin delivers a truly generous 44.5m² interior. The extra length allows for a larger lounge and dining area, making it a viable option for full-time residency or a premium guest suite.

Engineered for Stability: 88mm Glulam Logs

Just like its smaller counterpart, this lodge is constructed using 88mm Glulam (Glue Laminated) logs. This engineering process eliminates the natural movement found in standard solid logs, resulting in a wall structure that is incredibly strong, airtight, and resistant to warping. It is the gold standard for residential log cabins.

Bright, Warm, and Built to Last

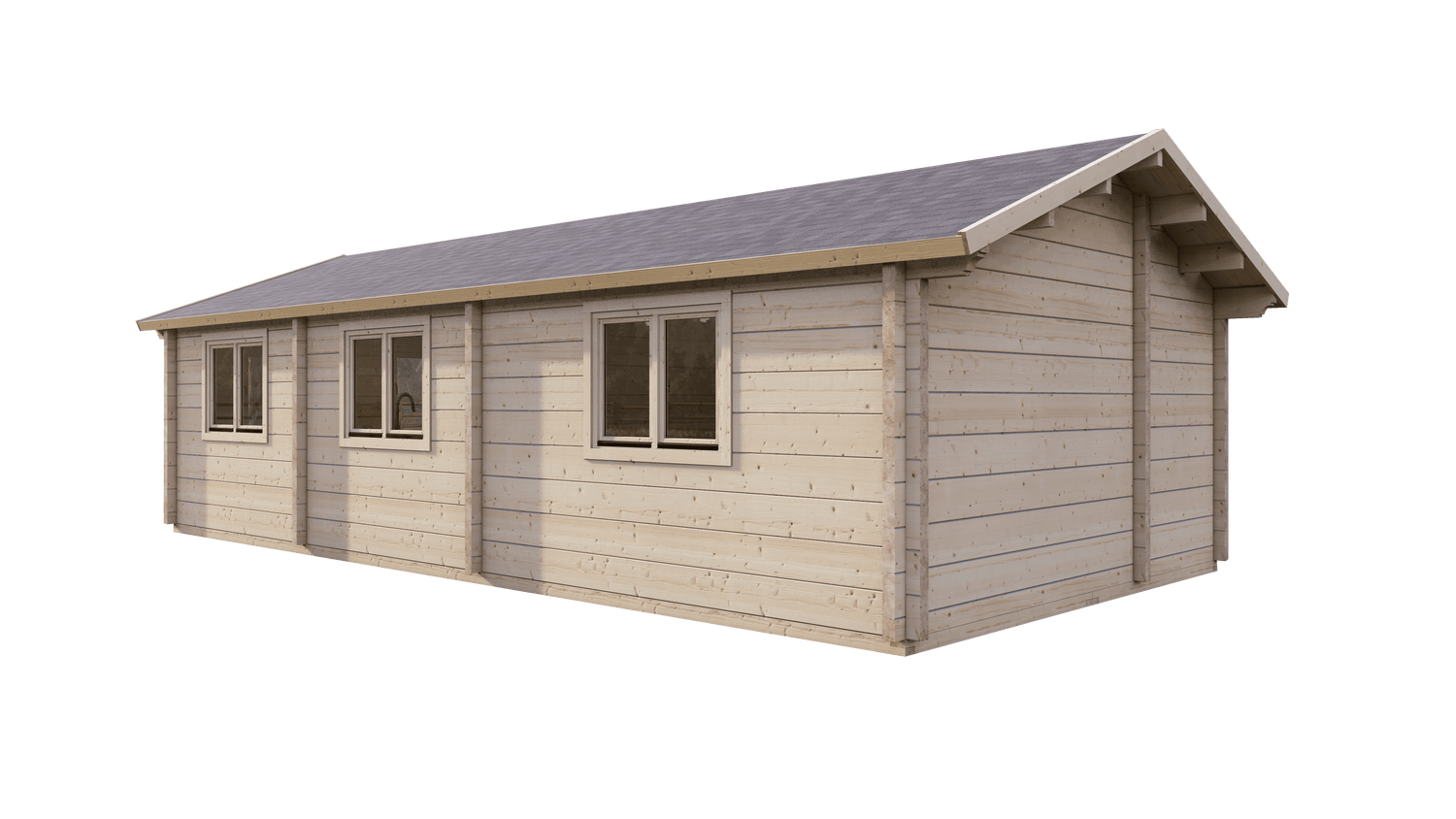

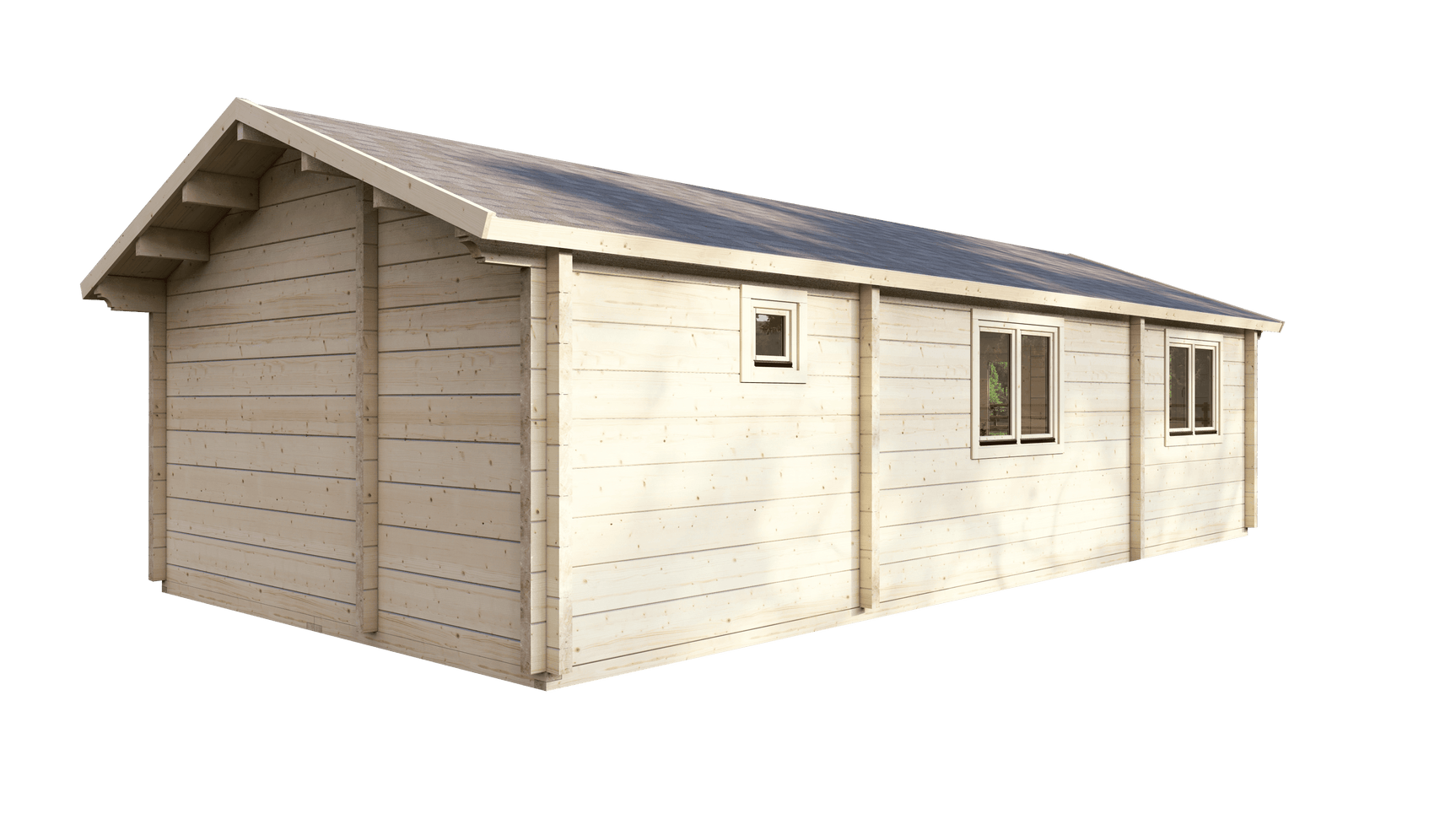

This model is designed to be a bright and welcoming home. It features five large side windows (two more than the 8m version), ensuring natural light reaches every corner of the extended living space.

• Insulation Ready: The roof structure includes a double roof preparation, specifically designed to house 100mm of insulation, keeping heating bills low.

• Heavy-Duty Base: The entire 10-metre length is supported by substantial 135mm x 135mm pressure-treated floor bearers, ensuring structural rigidity.

• Premium Finish: All windows and doors are "Living Type" 68mm, double-glazed, and arrive pre-painted, providing a maintenance-free, high-end finish from day one.

Key Features & Specifications
Below is the detailed technical specification for the Great Ouse 10x5m Lodge. Note the increased window quantity and expanded floor area.

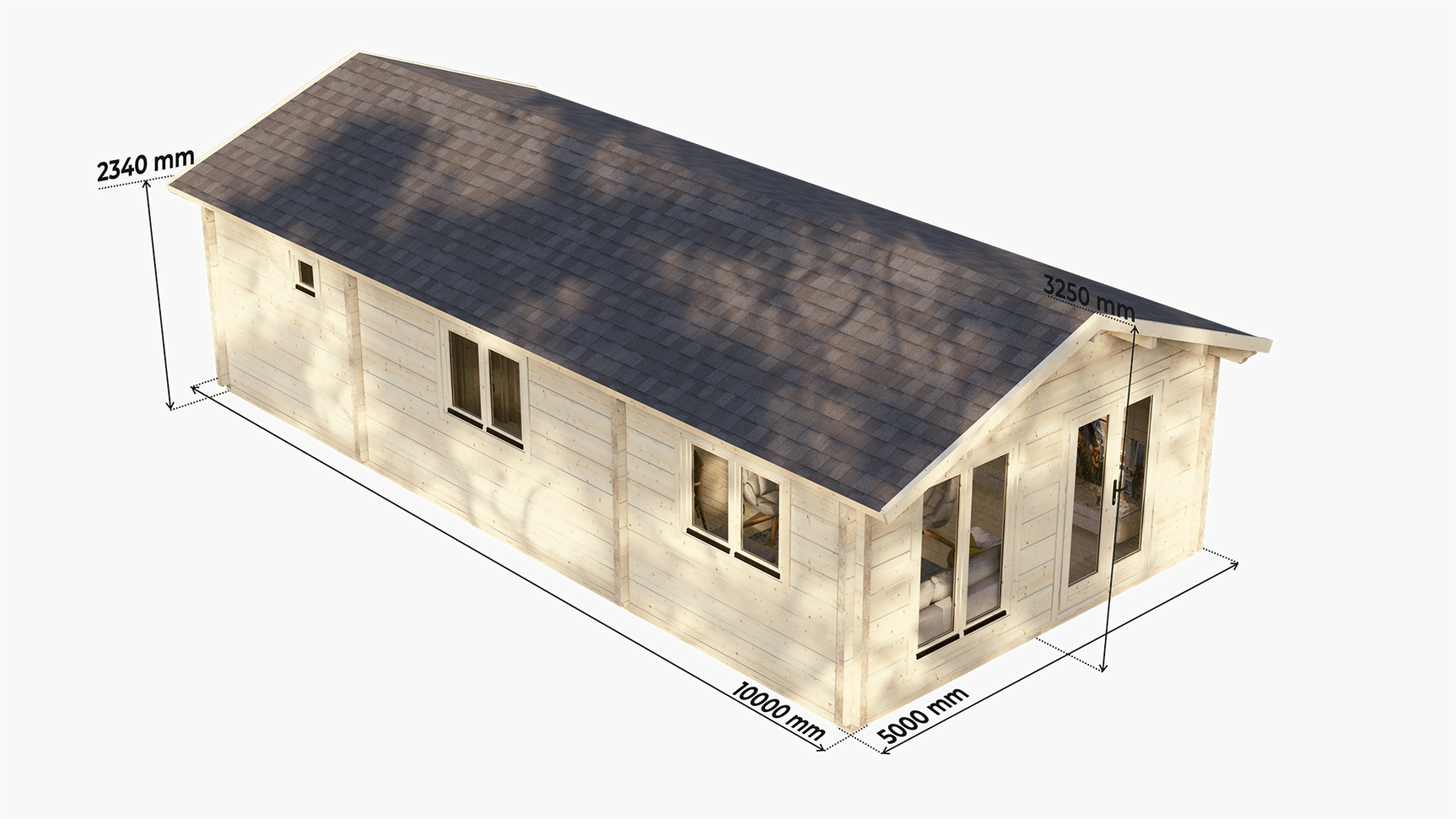

Dimensions & Area

Overall Dimensions: 5000 mm x 10000 mm (5m x 10m)
Internal Dimensions: 4624 mm x 9624 mm
Total Inside Area: 44.5 m²
Sidewall Height: 2340 mm
Ridge Height: 3250 mm

Construction Materials

Wall Logs: 88mm Glulam (Superior stability and thermal efficiency)
Internal Partition Walls: 88mm Glulam
Floor Bearers: Heavy Duty 135mm x 135mm
Floorboards: 28mm Tongue and Groove

Roof Structure

Roof Pitch: 20.40°
Roof Purlins: 88mm x 260mm (5 Units)
Roof Area: 75.1 m²
Roof Boards: 19mm
Insulation Prep: Double Roof Preparation (Ready for 100mm Insulation)

Windows & Doors (Living Type - Painted)

Window Quality: "Living Type" 68mm Frame (Pre-Painted)
Large Front Window: 1 Unit (1330x1770mm)
Side/Rear Windows: 5 Units (1330x990mm) – Increased light for larger space
Small Window: 1 Unit (580x600mm)
Entrance: 1 Unit Double Full Glass Door (1400x2030mm)
Internal Doors: 2 Units Solid Wood Doors (900x2030mm)

At Timber Building Specialists, we offer nationwide delivery across the UK for all our products. Our delivery vehicles are specially designed to cater to different products, and we rely on our customers to inform us of any restrictions when ordering. Generally, we require a 10ft wide clear access with a 10ft height restriction, but with our expertise and experience, we can overcome most obstacles as long as we are informed in advance. In some cases, an additional fee may be charged. Our friendly and professional staff are always available to assist you in case of any doubts, so please do not hesitate to contact us.
