Great Ouse 1 Bed Lodge | 10x6m

The Ultimate Residential Cabin: 10m x 6m Living

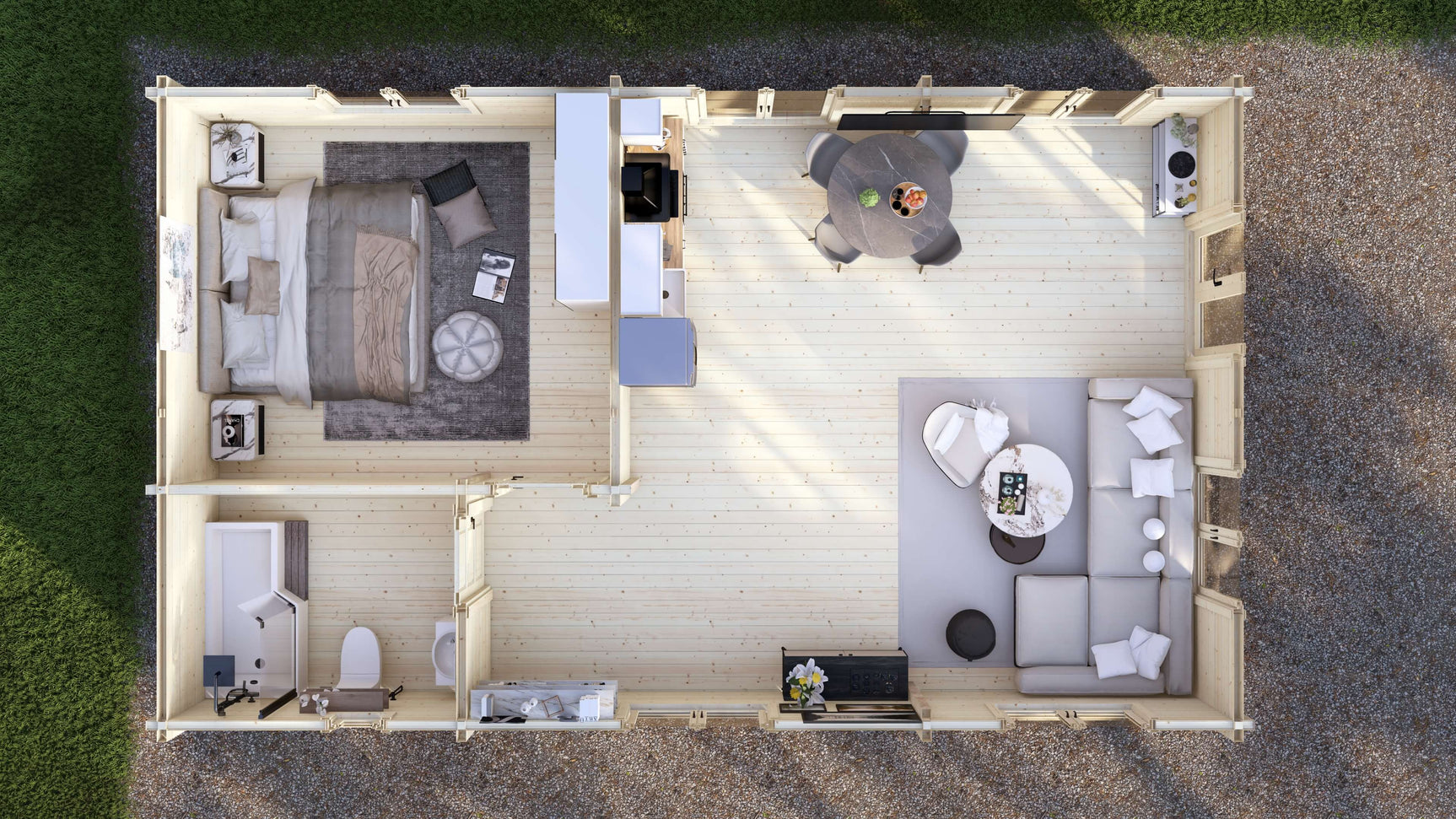

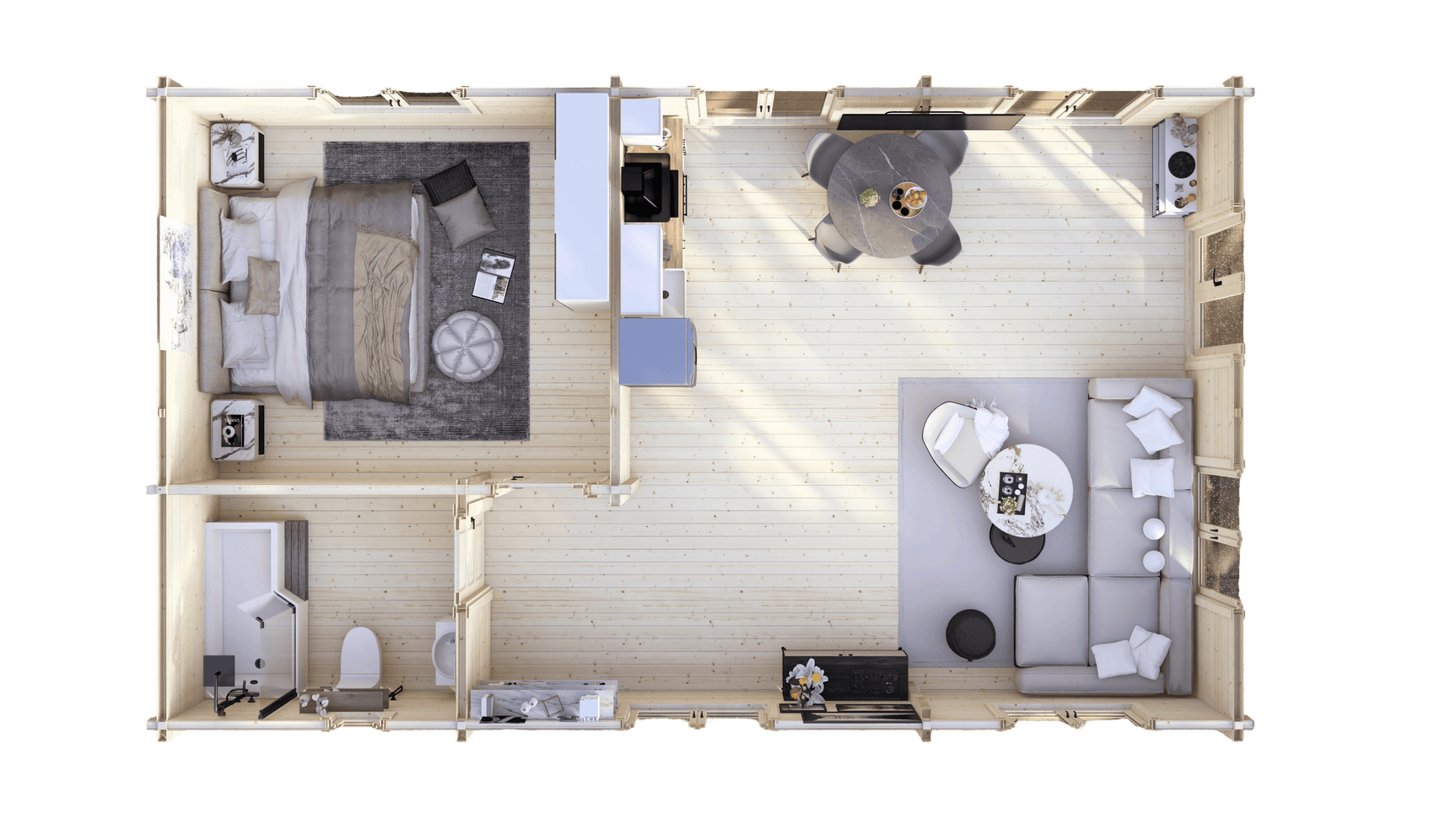

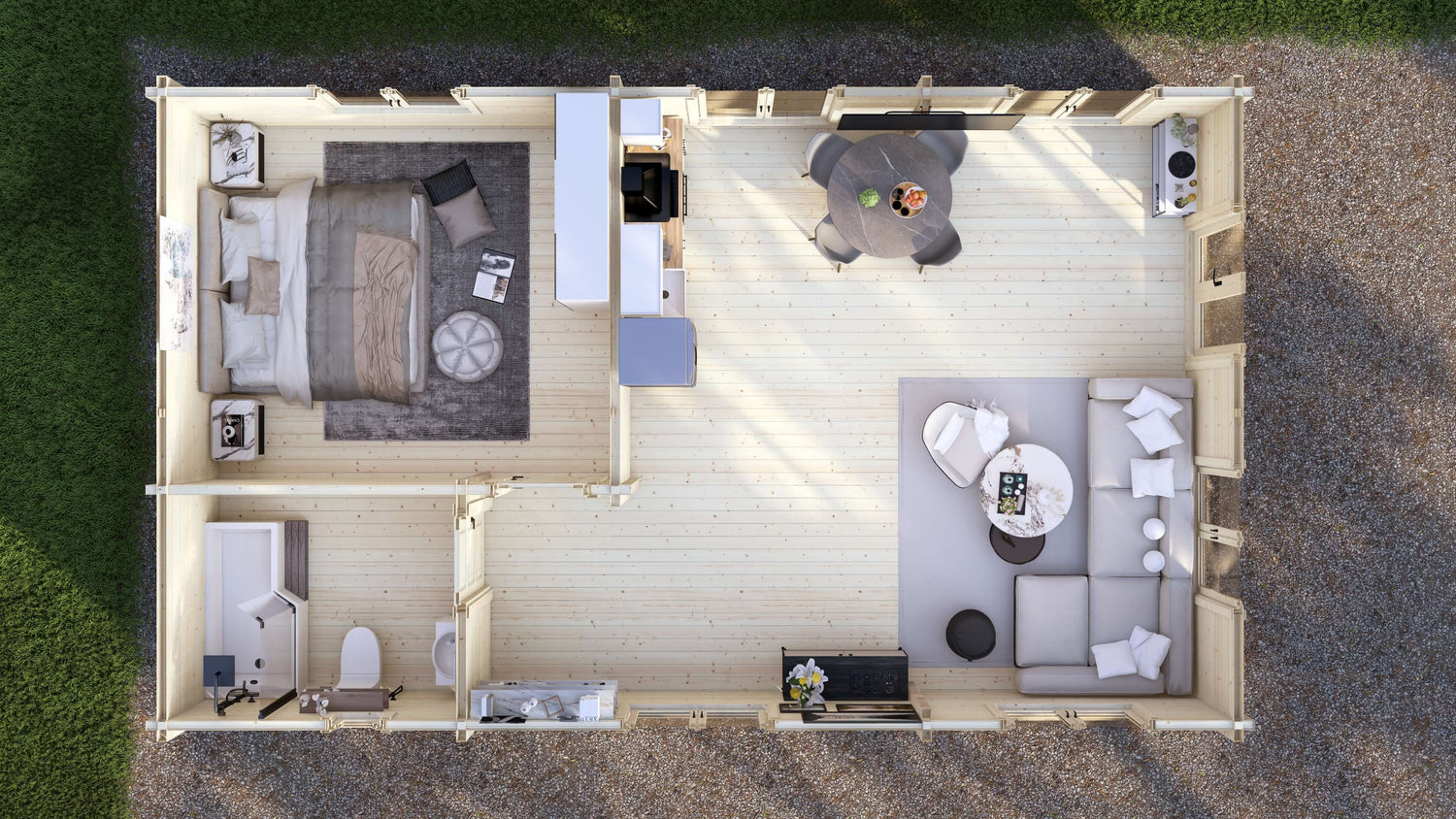

The Great Ouse 10x6m Lodge takes log cabin living to the next level. By increasing the width to 6 metres, this model provides a substantial 54.1m² internal area. This extra width drastically changes the feel of the interior, transforming it from a "cabin" into a spacious, open-plan apartment capable of accommodating full-sized furniture, a full kitchen, and a generous dining area with ease.

Heavy-Duty Structural Engineering

Spanning 6 metres requires exceptional structural integrity. That is why this model is built with:

• 88mm Glulam Logs: Our signature laminated logs ensure the walls remain straight, true, and thermally efficient, even over these larger dimensions.

• Enhanced Roof Structure: To support the wider roof span, we have increased the roof structure to 7 heavy-duty purlins (88mm x 260mm), ensuring maximum strength and stability under snow loads or heavy tiles.

• Massive Bearers: The foundation is laid on 135mm x 135mm floor bearers, providing a rock-solid platform for your home.

Flooded with Light

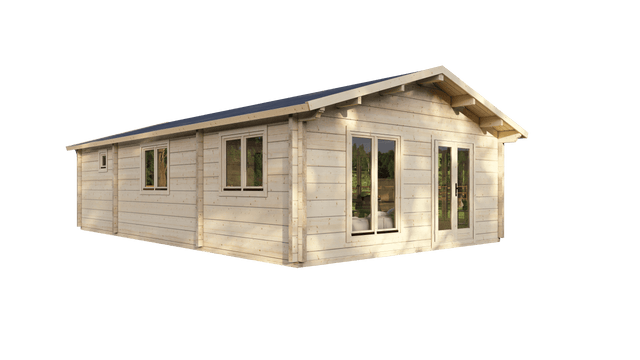

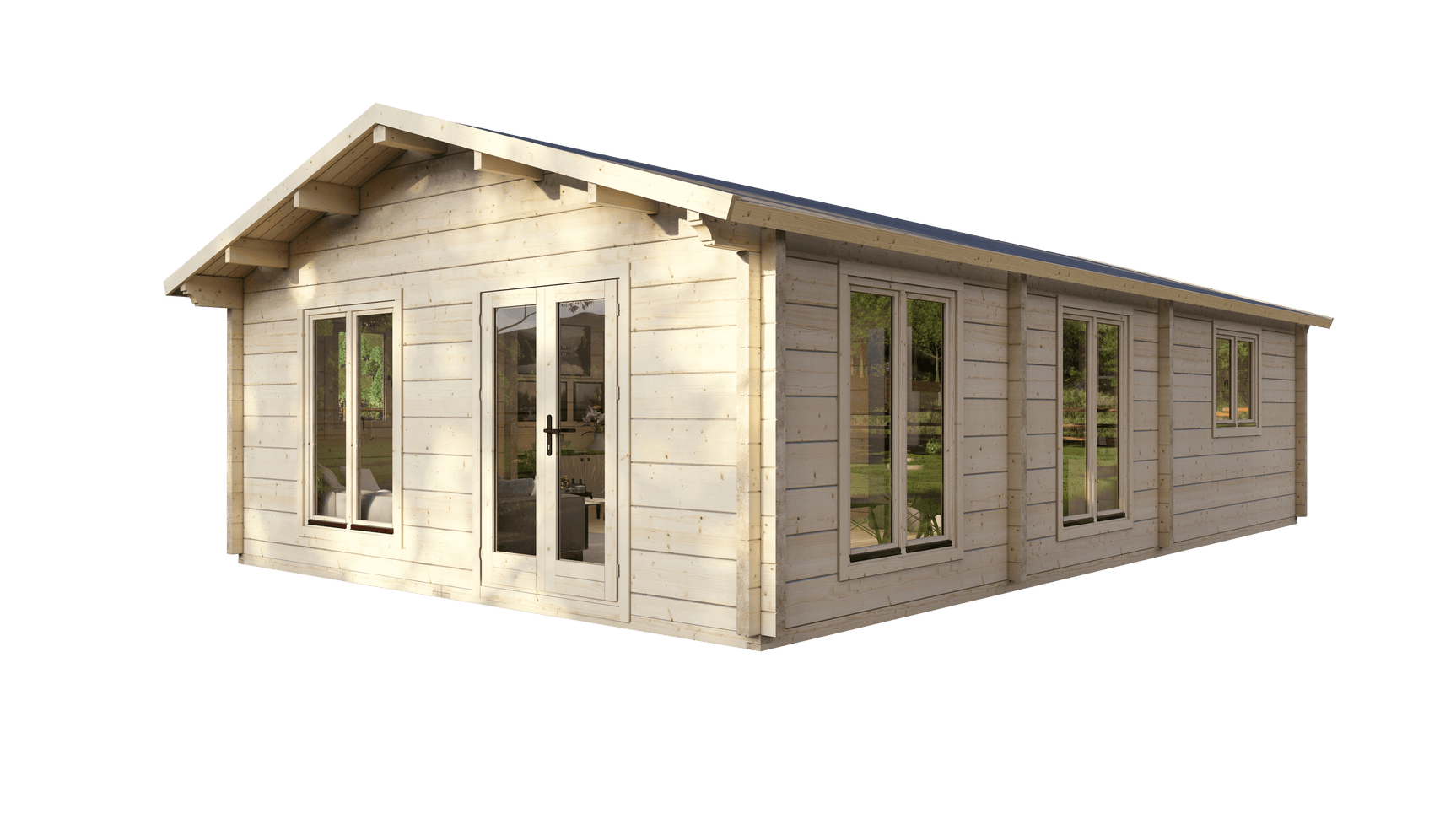

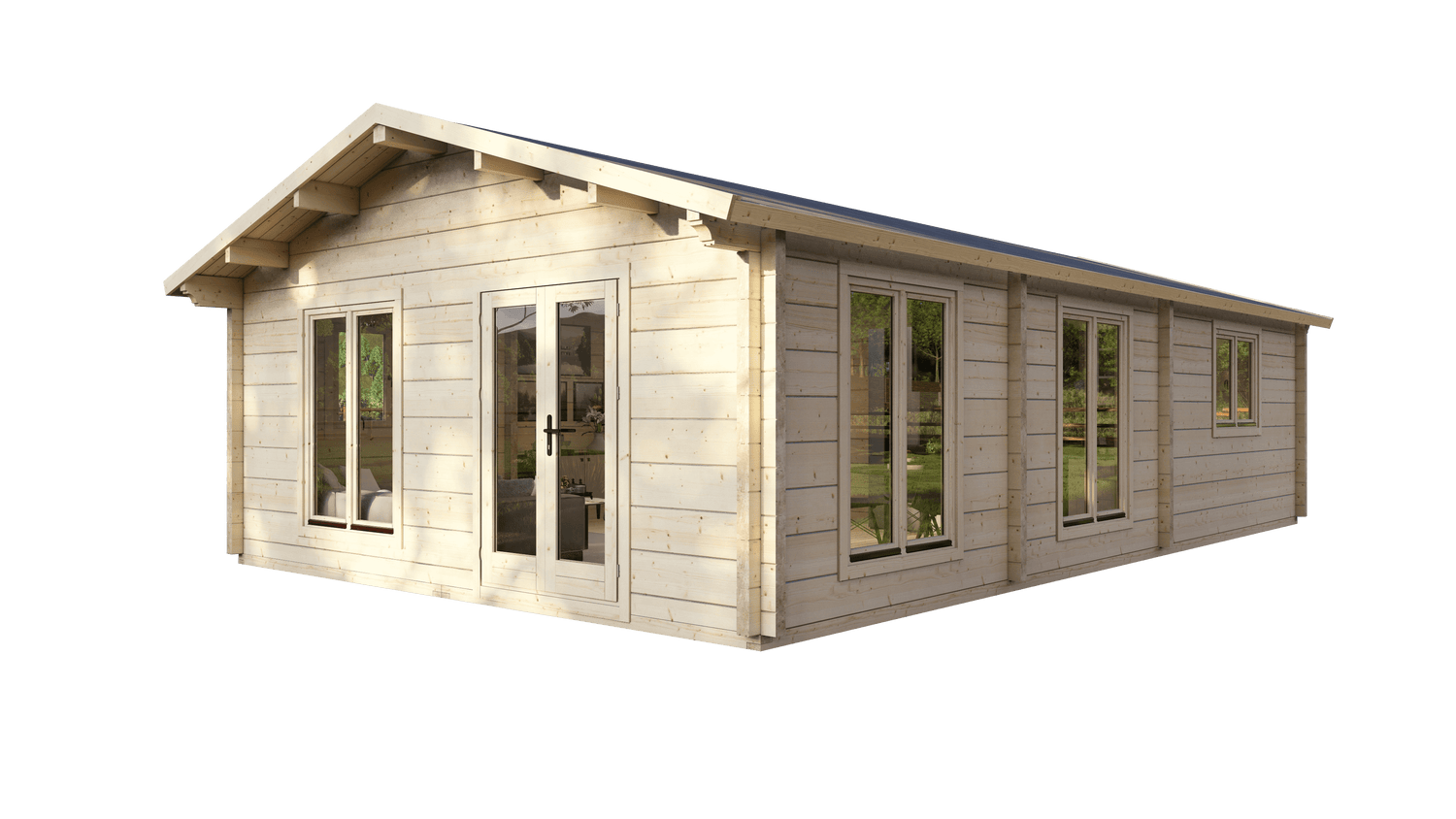

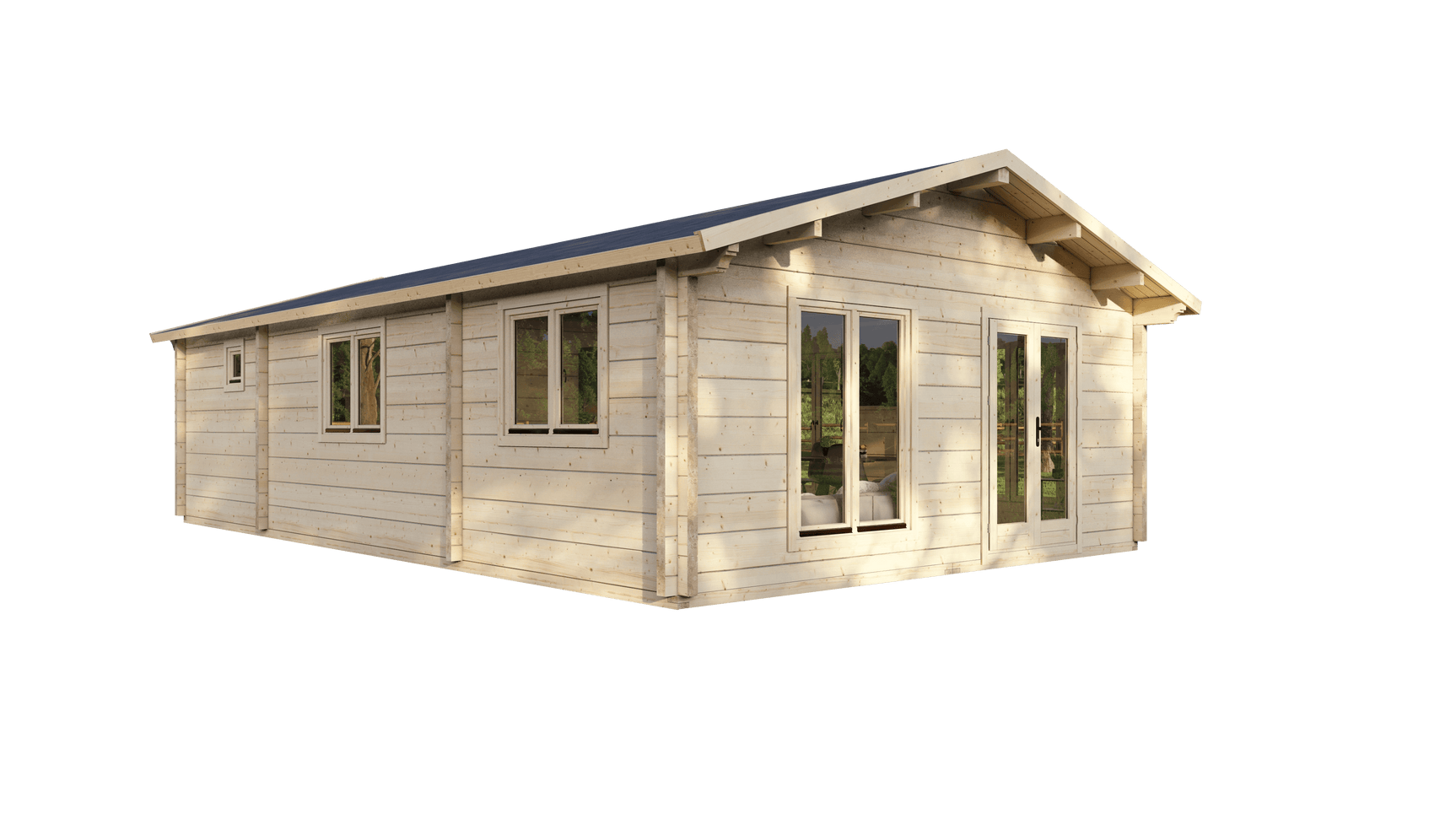

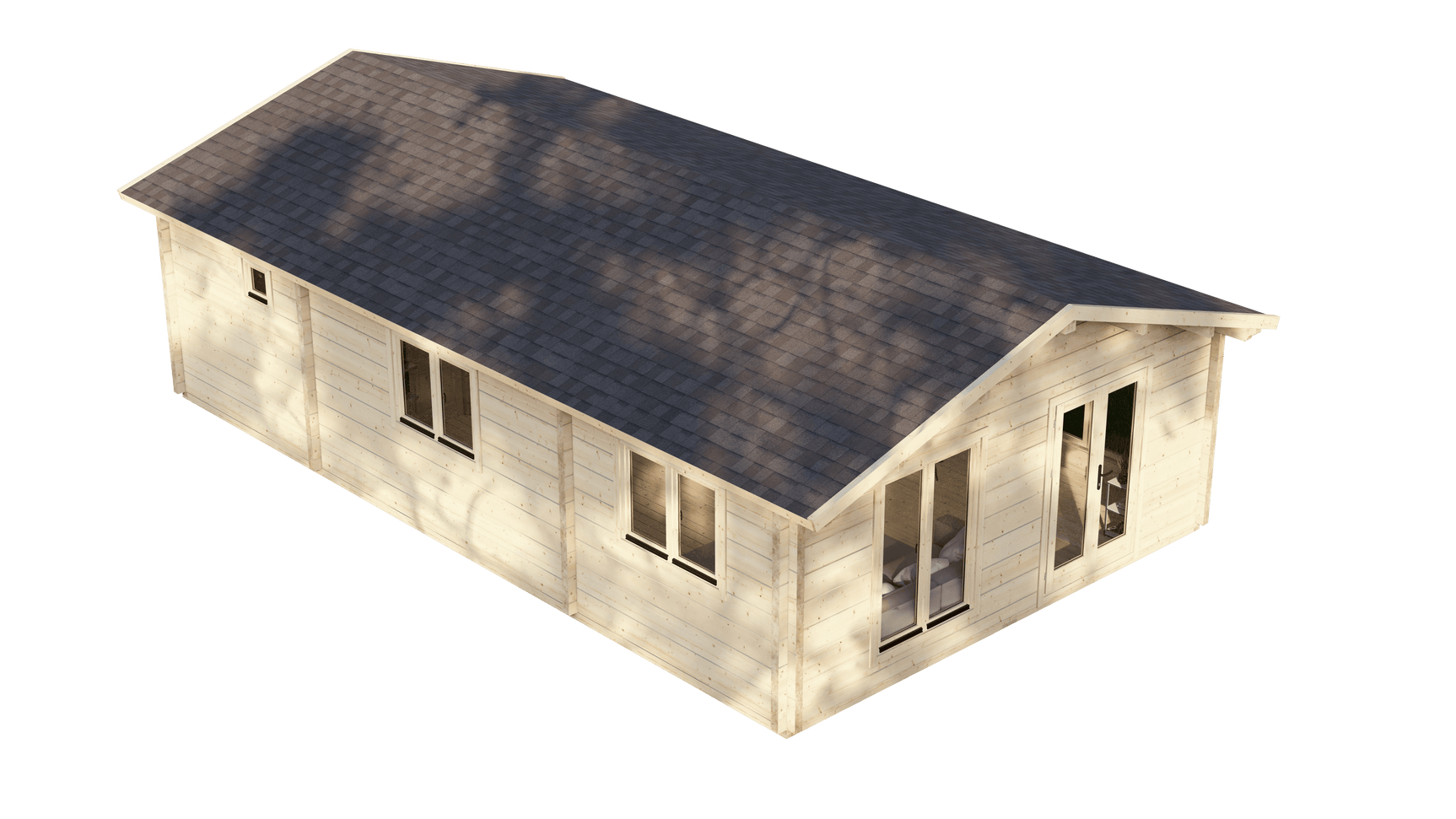

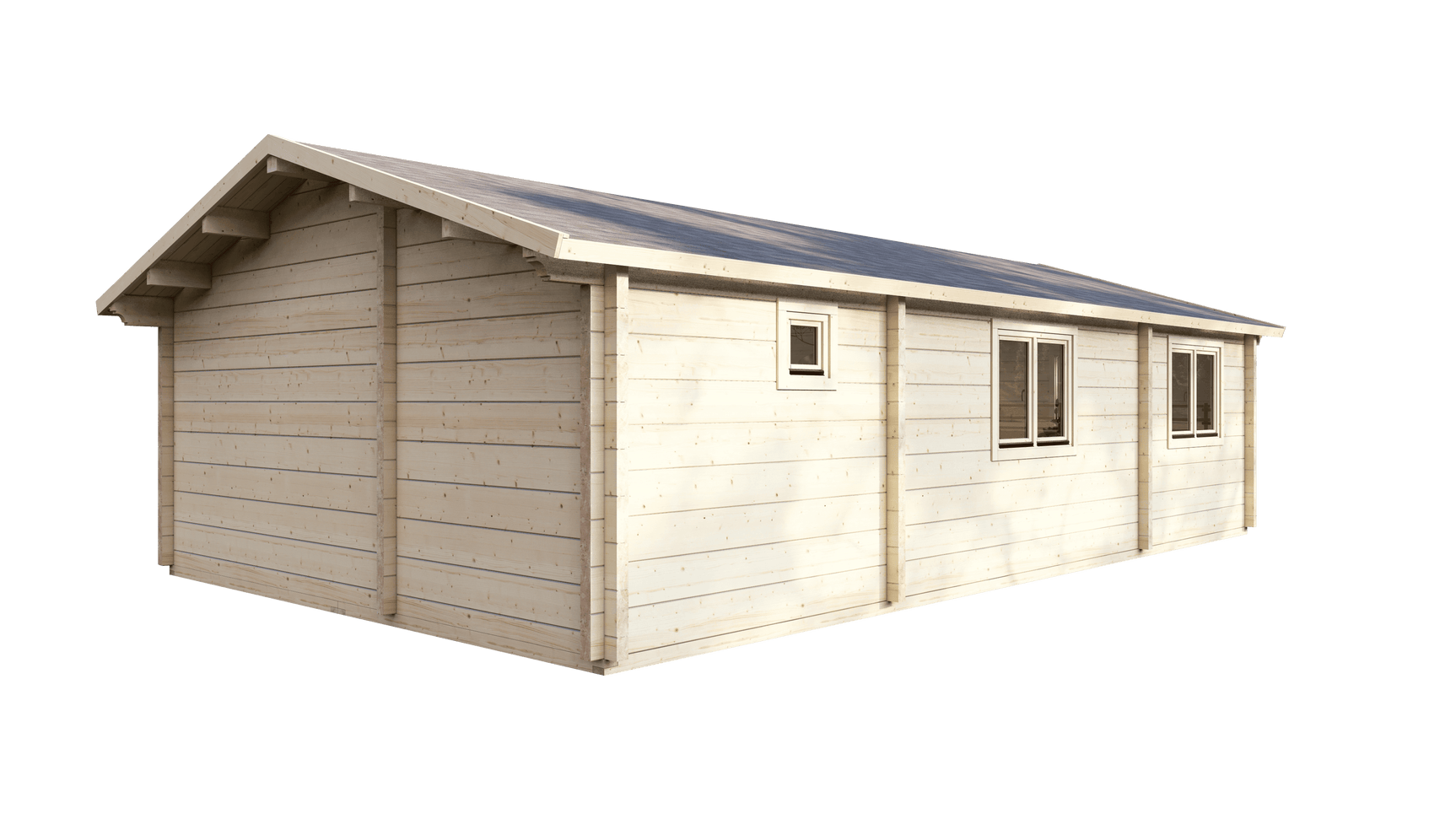

This model is designed to maximise natural light. It features three large floor-to-lintel windows (1330x1770mm)—tripling the amount of full-height glazing compared to the 8x5m model. Combined with three additional side windows and a full-glass double door, the interior feels bright, airy, and modern.

• Year-Round Comfort: The double roof preparation allows for 100mm of insulation, and the 28mm floorboards provide warmth underfoot, making this building fully viable for permanent residency in the UK climate.

Key Features & Specifications
Below is the detailed technical specification for the Great Ouse 10x6m Lodge. Note the increased purlin count and extra tall windows included in this flagship model.

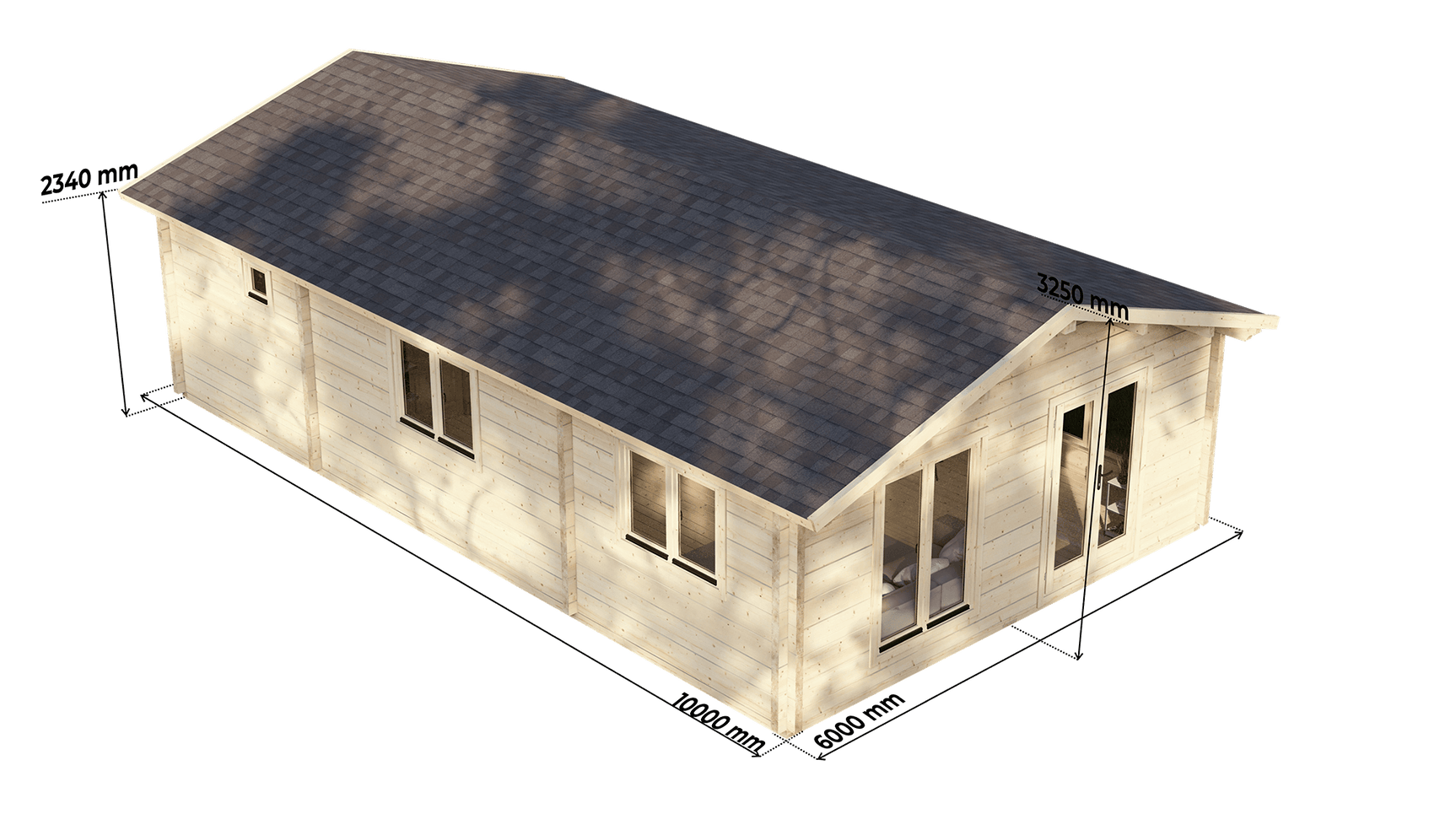

Dimensions & Area

Overall Dimensions: 6000 mm x 10000 mm (6m x 10m)
Internal Dimensions: 5624 mm x 9624 mm
Total Inside Area: 54.1 m² (Apartment Size)
Sidewall Height: 2340 mm
Ridge Height: 3250 mm

Construction Materials

Wall Logs: 88mm Glulam (Premium stability for large spans)
Internal Partition Walls: 88mm Glulam
Floor Bearers: Heavy Duty 135mm x 135mm
Floorboards: 28mm Tongue and Groove

Roof Structure

Roof Pitch: 17.20°
Roof Purlins: 88mm x 260mm (7 Units - Upgraded for 6m span)
Roof Area: 83.5 m²
Roof Boards: 19mm

Insulation Prep: Double Roof Preparation (100mm Insulation gap)

Windows & Doors (Living Type - Painted)
Window Quality: "Living Type" 68mm Frame (Pre-Painted)
Large Tall Windows: 3 Units (1330x1770mm) – Full height luxury glazing
Side/Rear Windows: 3 Units (1330x990mm)
Small Window: 1 Unit (580x600mm)
Entrance: 1 Unit Double Full Glass Door (1400x2030mm)
Internal Doors: 2 Units Solid Wood Doors (900x2030mm)
