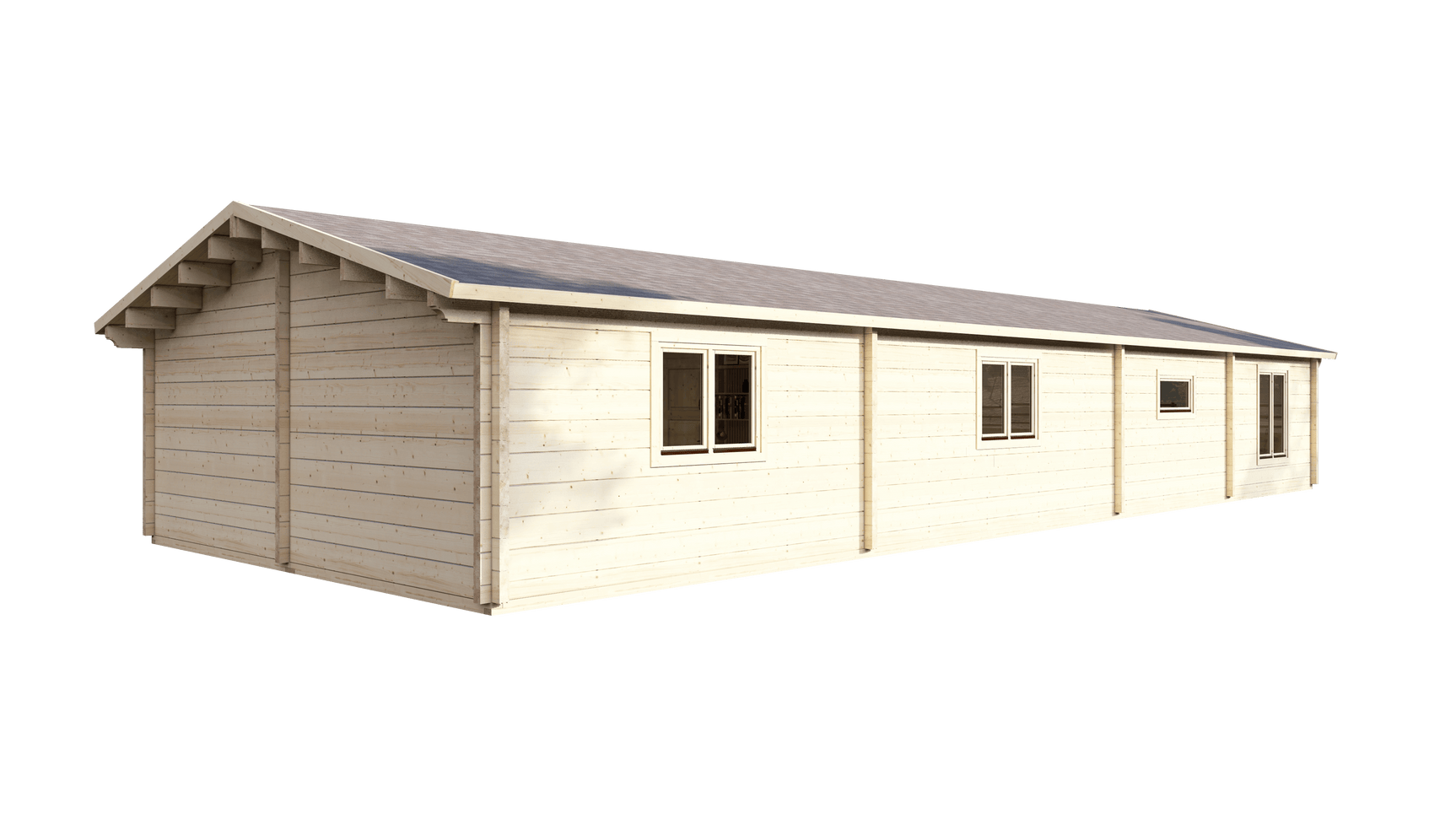

Severn 4 Bed Lodge | 18x6.8m

The Flagship Residence: The Severn 4-Bed

Named after the UK’s longest river, the Severn Lodge is the largest, most impressive single-unit building in our collection. Spanning 18 metres in length and 6.8 metres in width, it provides 113.2 square metres of living space. To put this in context, this is a full-scale family home, offering accommodation capabilities rarely seen in the log cabin market.

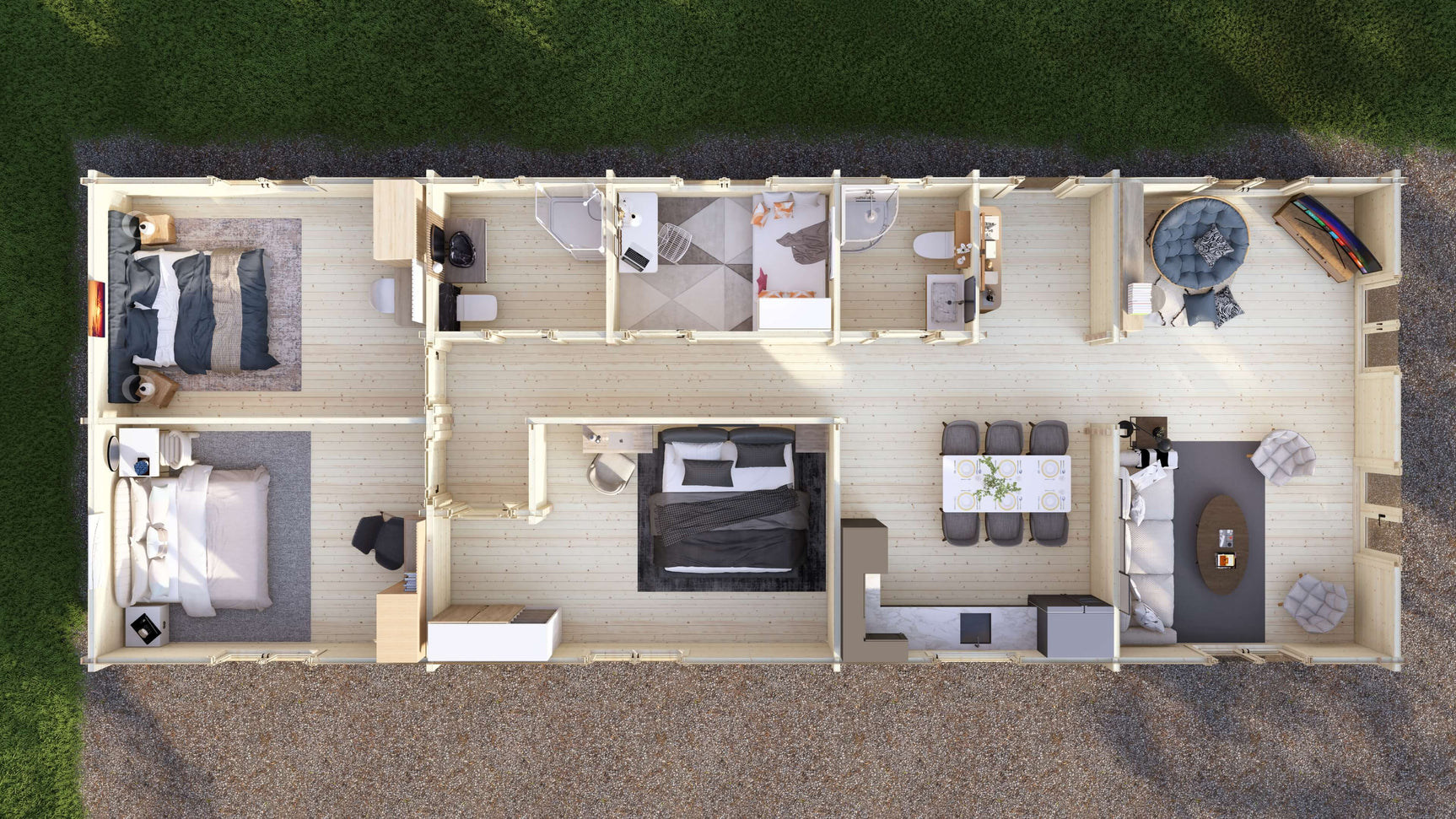

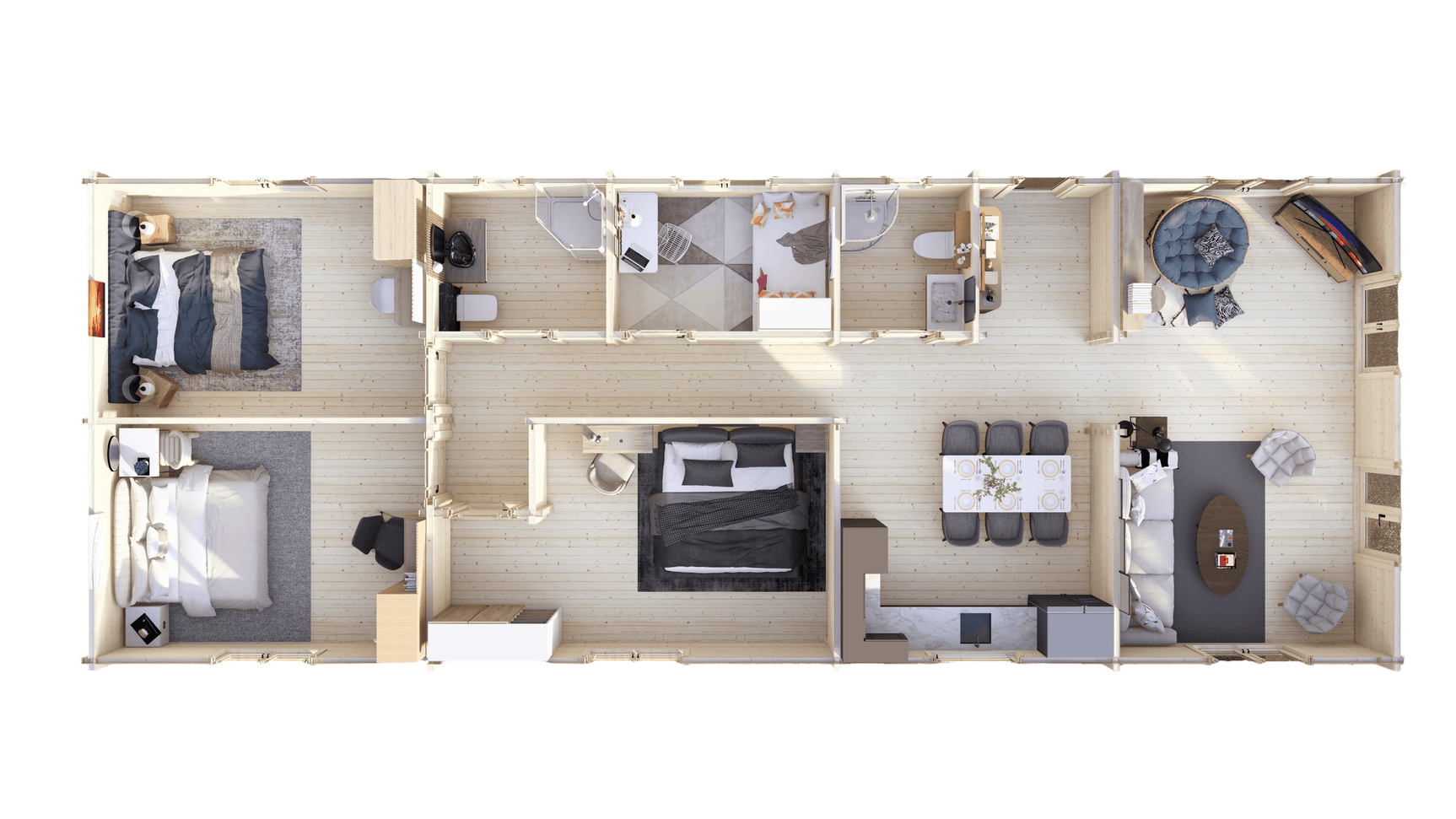

True 4-Bedroom Capacity

The Severn is designed for maximum occupancy without feeling crowded. The sheer scale of the footprint allows for a comfortable 4-bedroom layout.

• Internal Layout: With 6 solid wood internal doors, the design accommodates four bedrooms plus two additional rooms (typically a family bathroom and an en-suite or utility room).

• Residential Privacy: The bedrooms are separated from the main living zone, ensuring acoustic privacy for large families or guests.

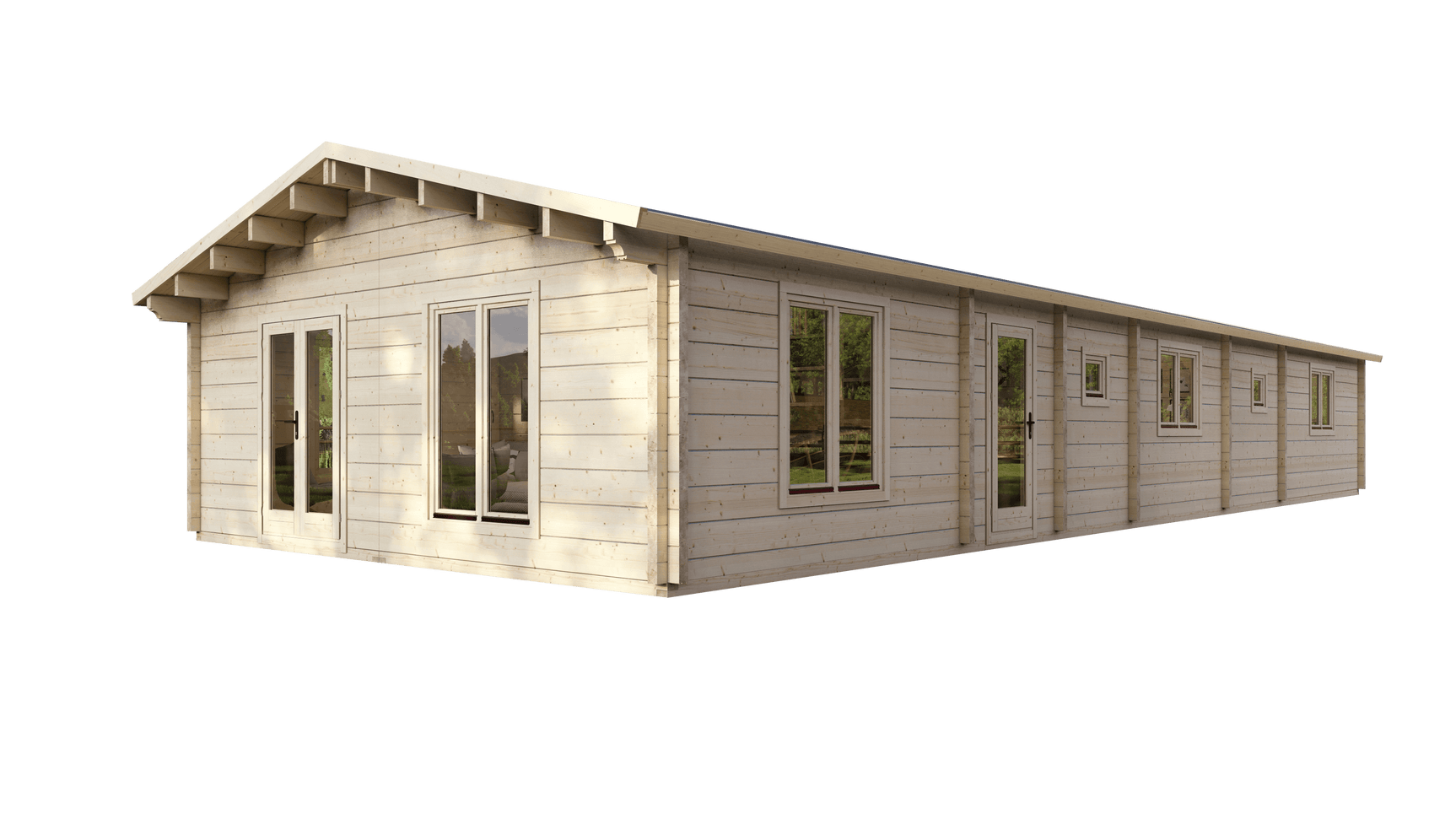

Bespoke Panoramic Glazing

What immediately strikes you about the Severn is the glass. It features a custom glazing package including two massive feature windows (over 3.4m and 4.4m wide respectively). These are likely designed as gable-end or panoramic feature walls, flooding the vast open-plan living area with light and creating a stunning architectural focal point.

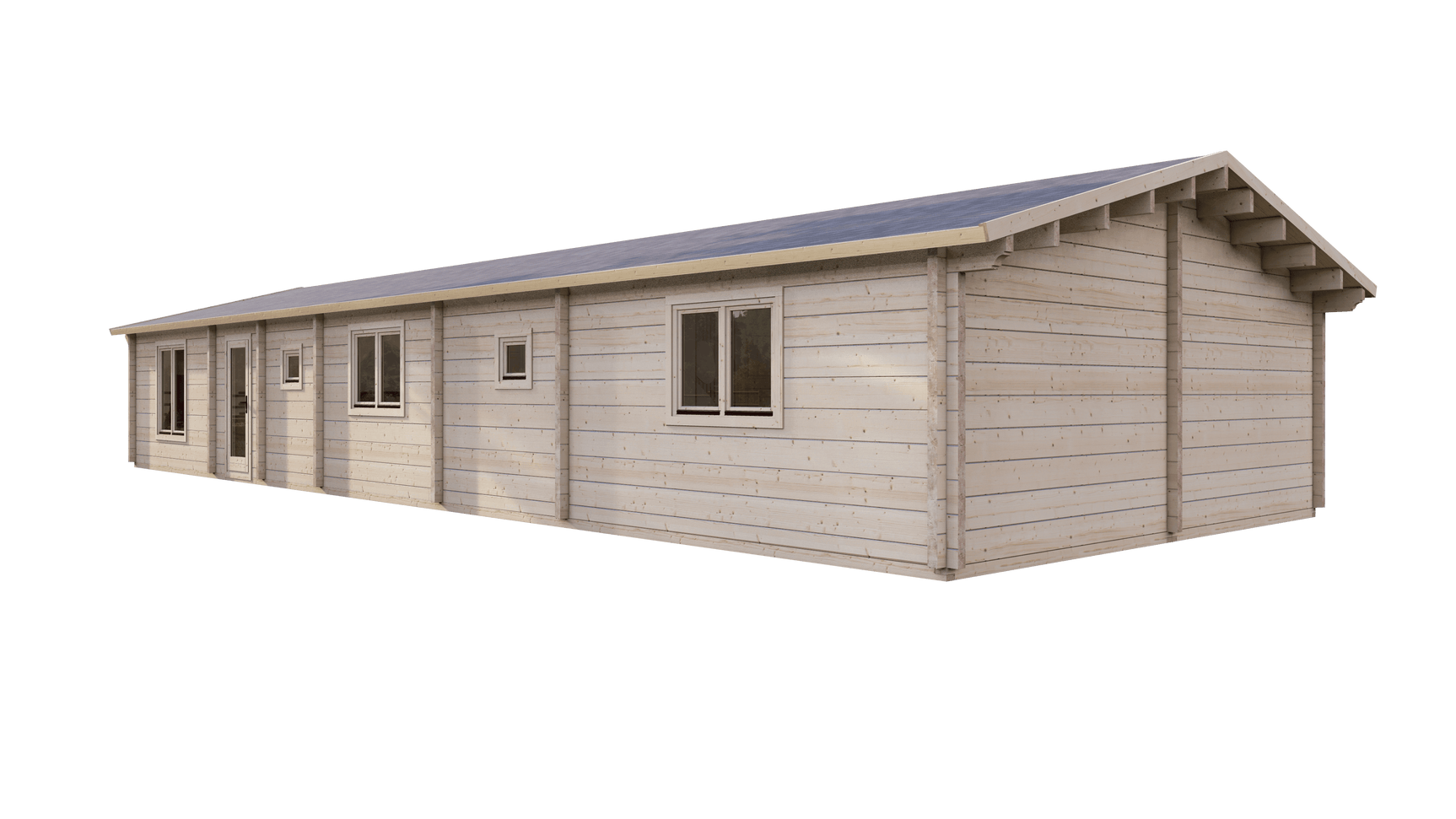

Unrivalled Structural Integrity

Building at this scale requires the best materials available:

• 88mm Glulam Logs: Essential for an 18-metre wall, these laminated logs prevent movement, warping, and heat loss.

• Heavy Duty Roof: Supported by 88mm x 260mm purlins, the roof covers a massive 157m² area and includes a 100mm cavity preparation for residential-grade insulation.

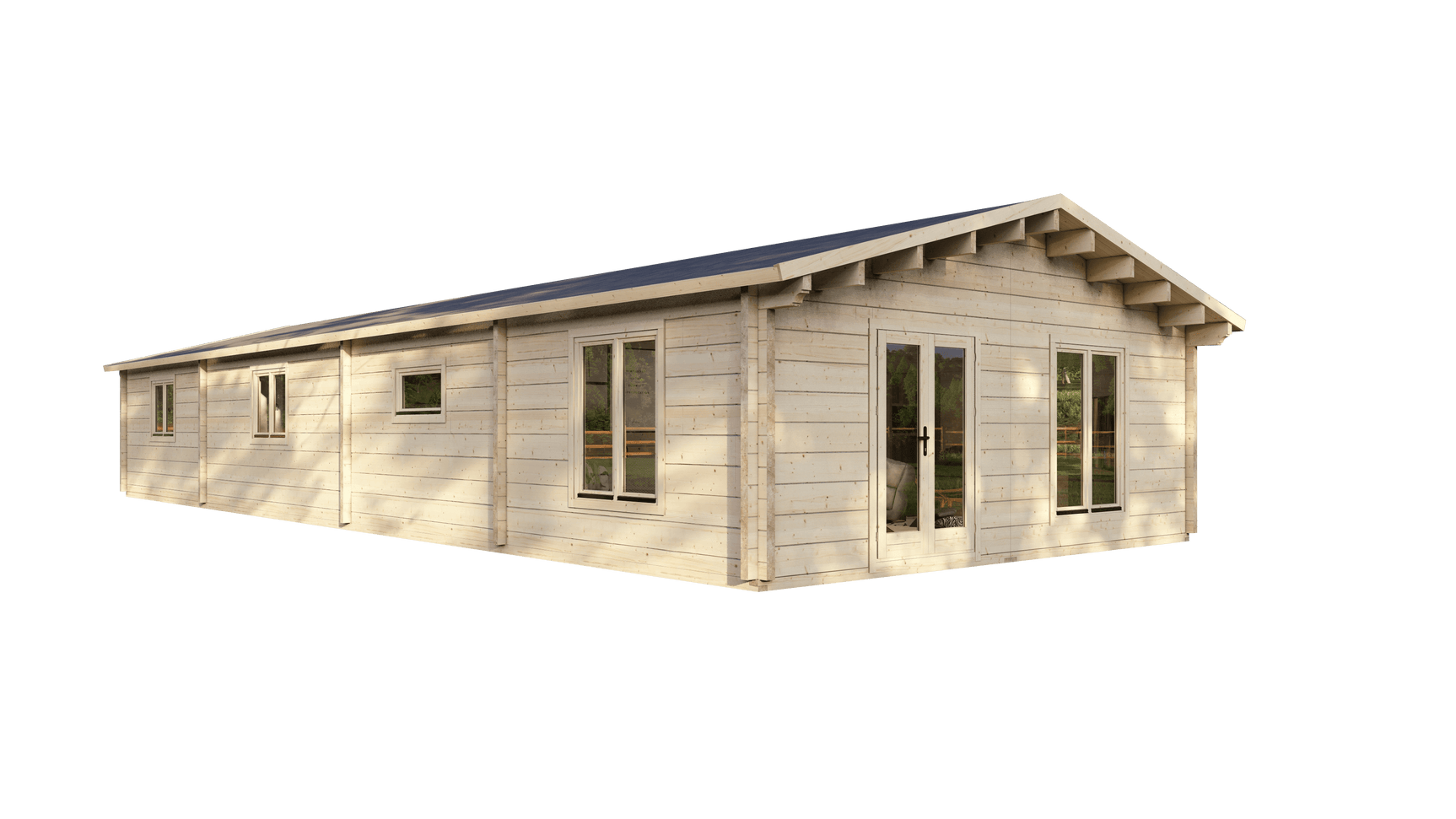

• Dual Access: Features a glass double door for the lounge and a glass single door for practical side entry.

Key Features & Specifications
Below is the detailed technical specification for the Severn 18x6.8m Lodge. Note the massive 113m² floor area and the inclusion of Bespoke Feature Glazing.

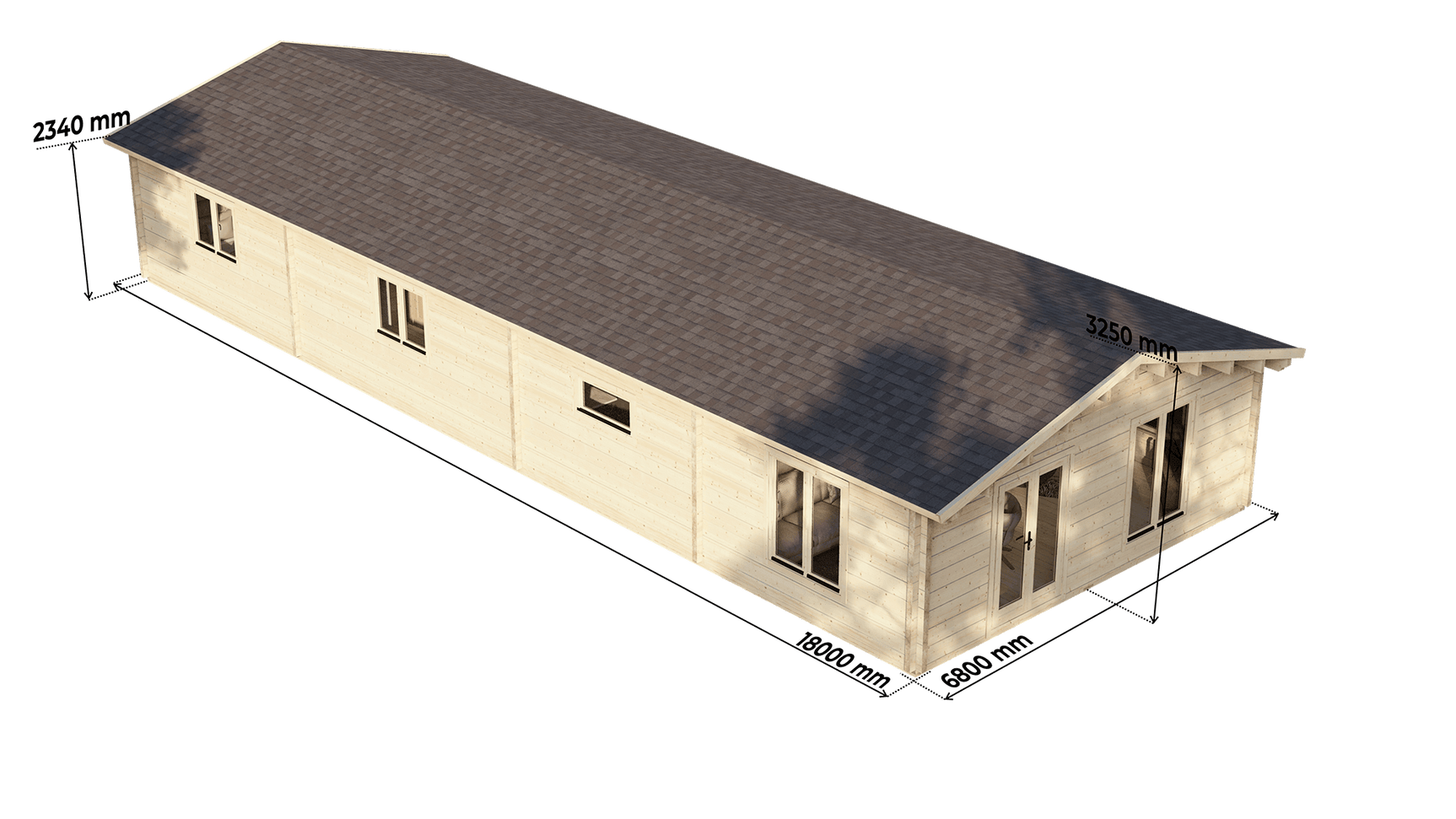

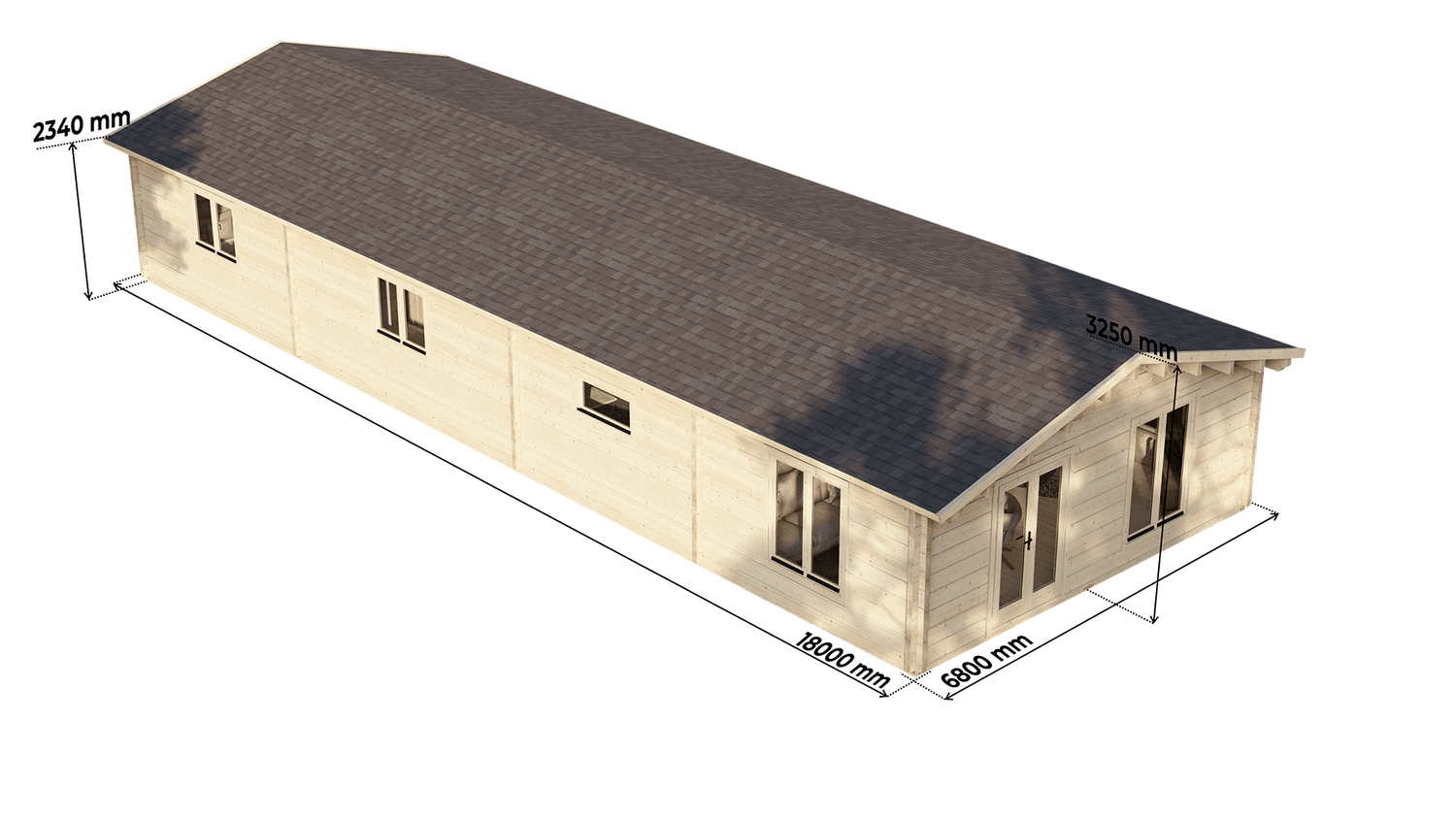

Dimensions & Area

Overall Dimensions: 6800 mm x 18000 mm (6.8m x 18m)
Internal Dimensions: 6424 mm x 17624 mm
Total Inside Area: 113.2 m² (Large Family Home)
Sidewall Height: 2340 mm
Ridge Height: 3250 mm

Construction Materials

Wall Logs: 88mm Glulam (Maximum stability for 18m length)
Internal Partition Walls: 88mm Glulam
Floor Bearers: Heavy Duty 135mm x 135mm
Floorboards: 28mm Tongue and Groove

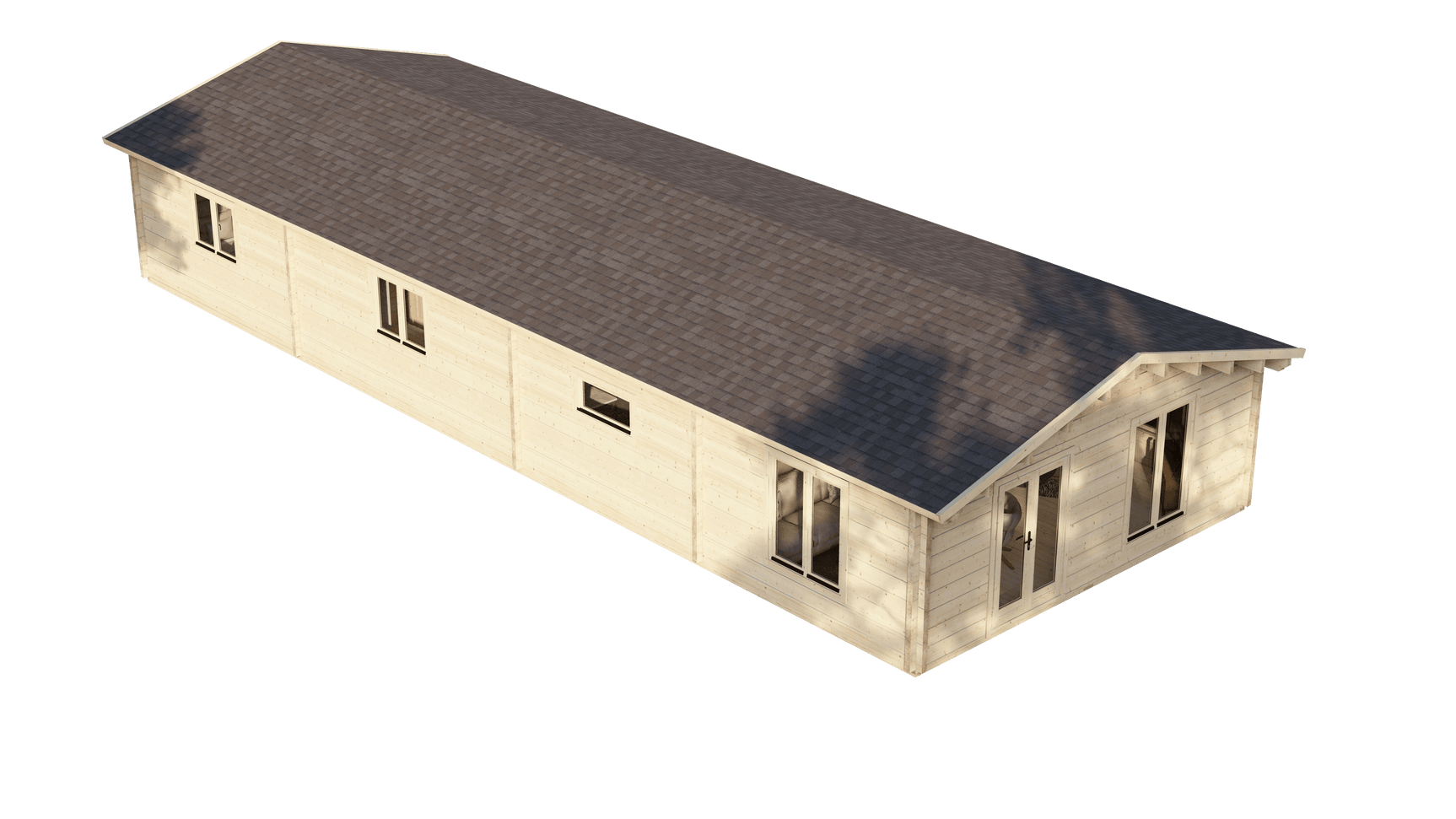

Roof Structure

Roof Pitch: 15.20°
Roof Purlins: 88mm x 260mm (7 Units)
Roof Area: 157.6 m²

Insulation Prep: Double Roof Preparation (100mm Insulation gap)

Windows & Doors (Living Type - 68mm)
Window Quality: "Living Type" 68mm Frame (Double Glazed, Pre-Painted)
Bespoke Feature Glazing: 2 Units (Large span 3.4m+ & 4.4m+ custom shapes)
Large Living Windows: 1 Unit (1330x1770mm) & 2 Units (1330x1510mm)
Bedroom/Standard Windows: 4 Units (1330x990mm)
Kitchen Window: 1 Unit (1200x600mm)
Bathroom/Utility Windows: 2 Units (580x600mm)
Main Entrance: 1 Unit Double Full Glass Door (1400x2030mm)
Side Entrance: 1 Unit Single Full Glass Door (900x2030mm)
Internal Doors: 6 Units Solid Wood Doors (850x2030mm)

At Timber Building Specialists, we offer nationwide delivery across the UK for all our products. Our delivery vehicles are specially designed to cater to different products, and we rely on our customers to inform us of any restrictions when ordering. Generally, we require a 10ft wide clear access with a 10ft height restriction, but with our expertise and experience, we can overcome most obstacles as long as we are informed in advance. In some cases, an additional fee may be charged. Our friendly and professional staff are always available to assist you in case of any doubts, so please do not hesitate to contact us.
