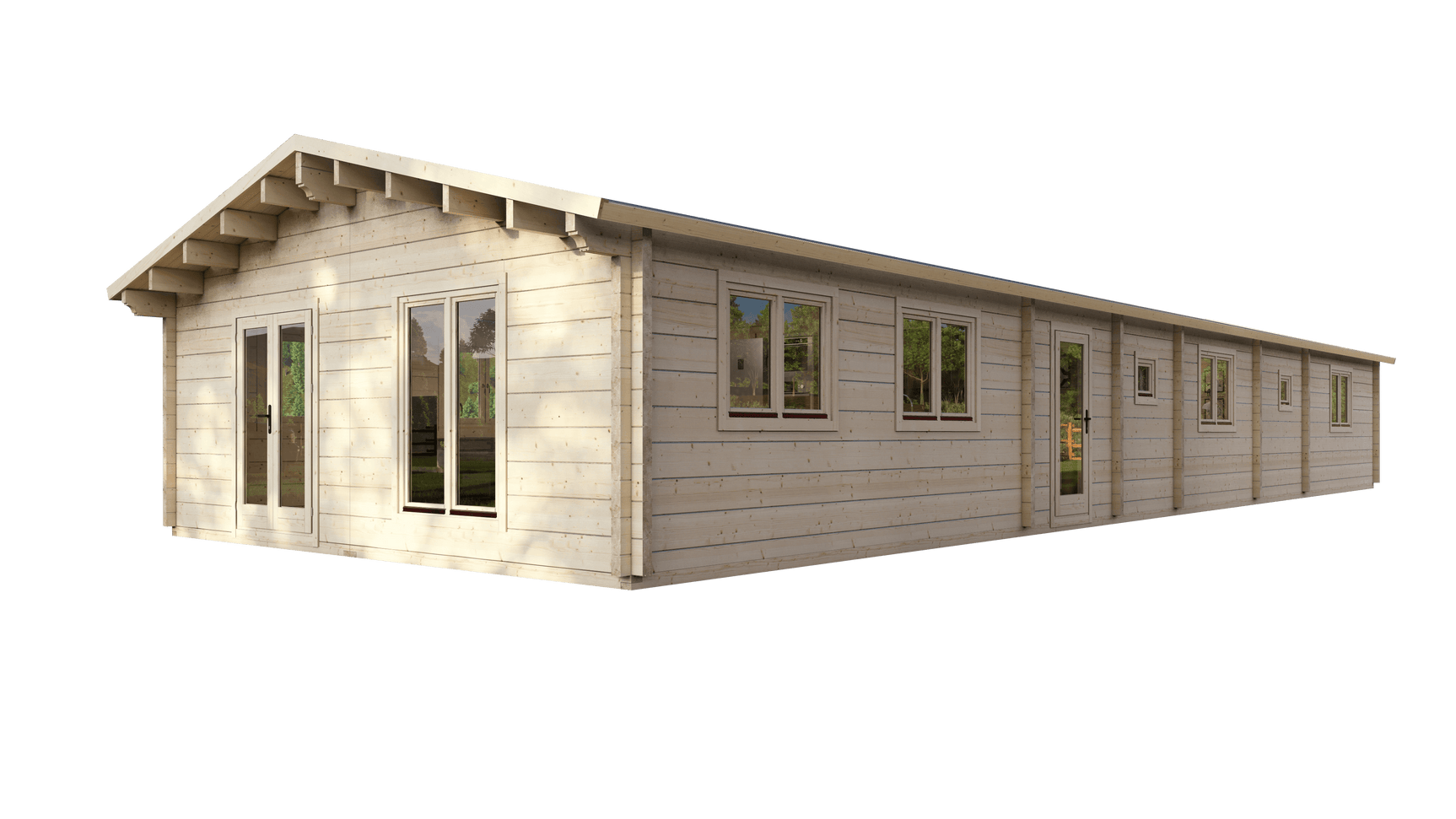

Severn 4 Bed Lodge | 20x6.8m

The Ultimate Timber Residence: The Severn 20m

The Severn 20x6.8m Lodge sits at the very top of our residential collection. It is designed for clients who refuse to compromise on space. Stretching an impressive 20 metres in length, this building offers a massive 126.1 square metres of usable interior floor area. This is not just a cabin; it is a substantial, permanent family home.

Unrivalled Capacity

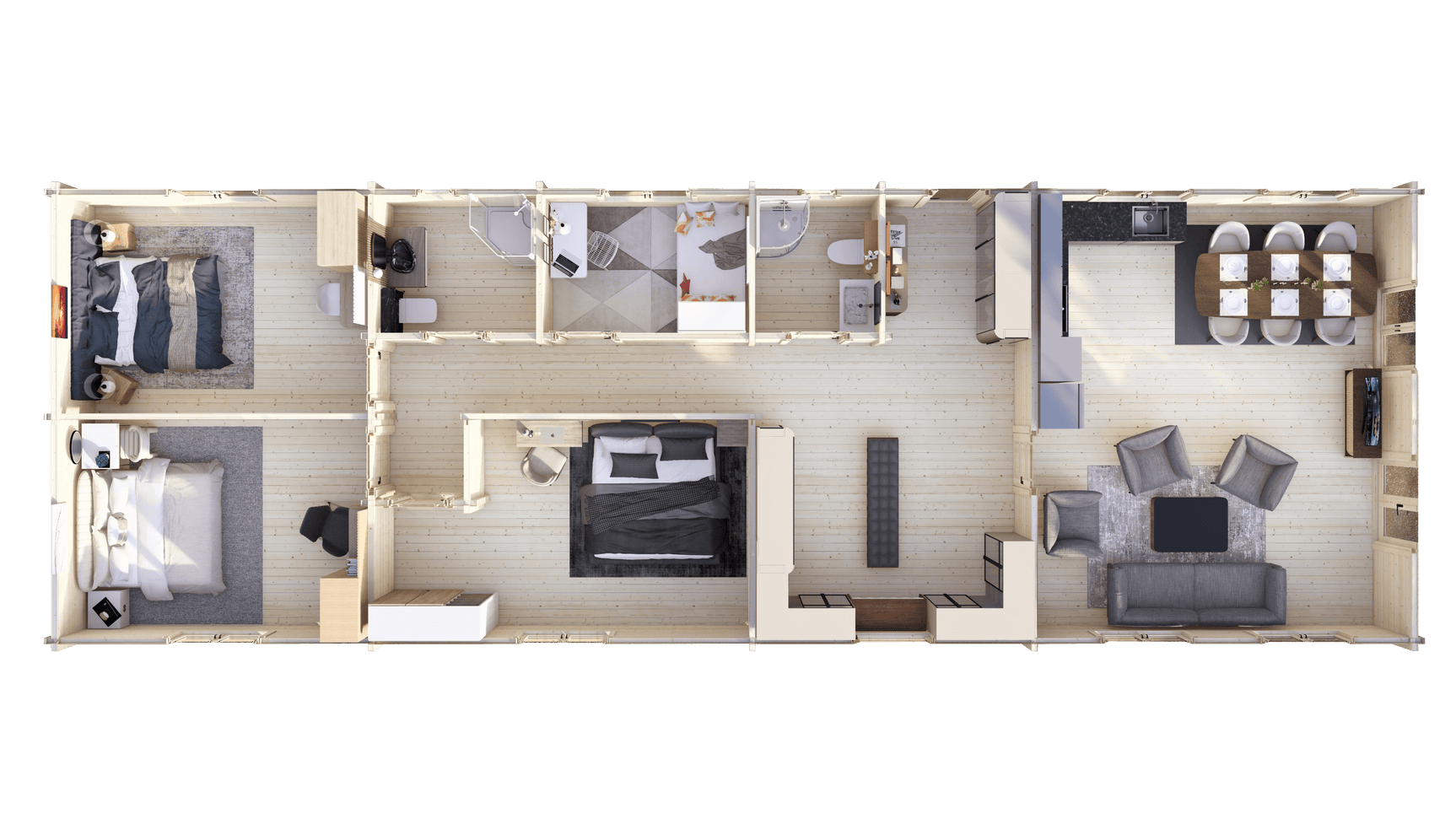

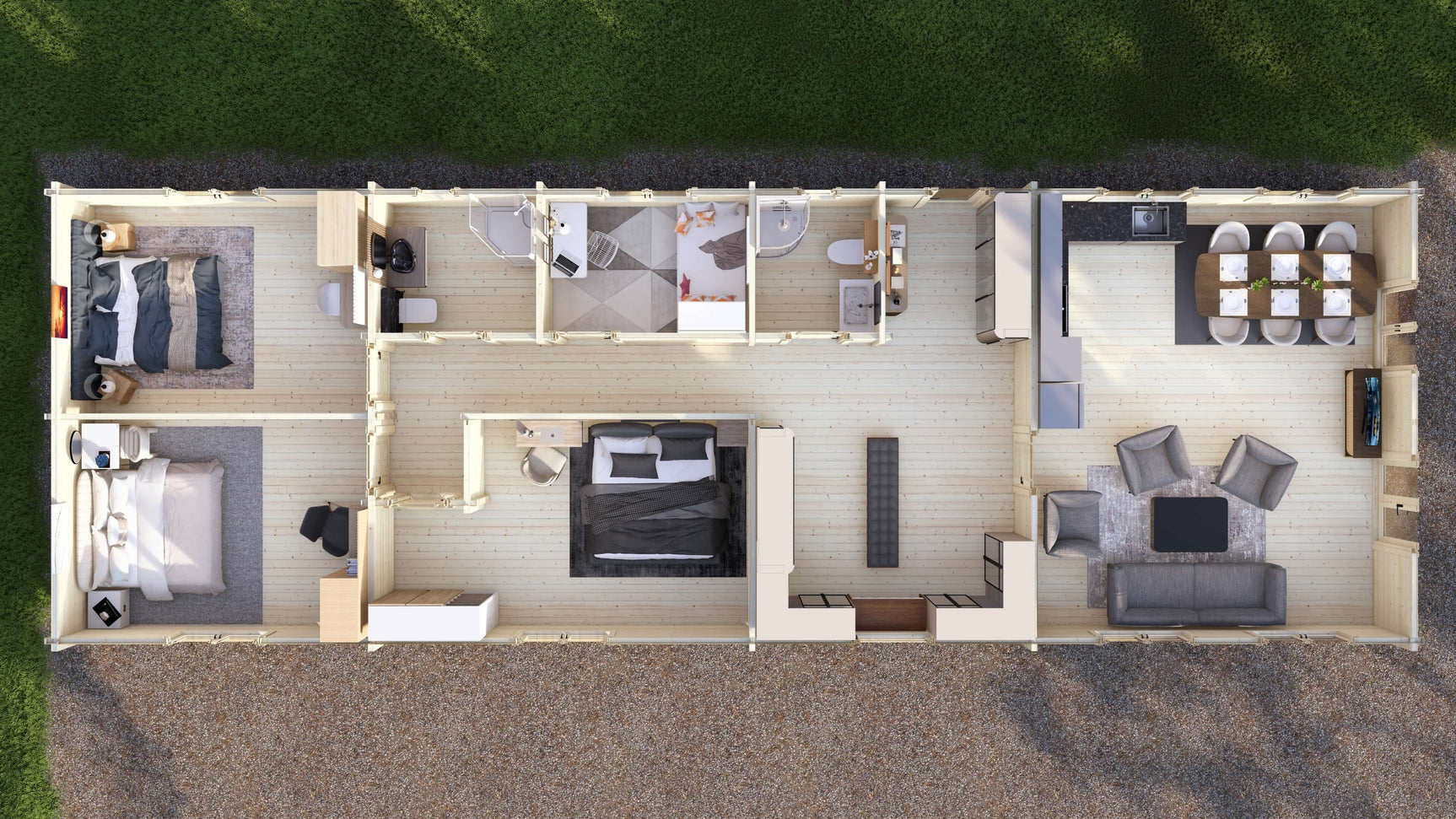

The 20-metre footprint allows for a layout that is simply impossible in smaller structures.

• 4 Generous Bedrooms: The scale allows for four large double bedrooms without encroaching on the living space.

• Extensive Facilities: With 7 solid wood internal doors, the design can easily accommodate a family bathroom, an en-suite, a utility room, and a walk-in wardrobe or pantry.

• Open Plan Grandeur: The central living, dining, and kitchen area is vast, designed to be the heart of the home.

Bespoke Architectural Glazing

The Severn 20m is defined by its light. The specification includes two massive bespoke feature window units (spanning over 8 metres in the design specifications), creating a wall of glass that creates a seamless connection with the outdoors. Combined with 8 standard living windows and specific kitchen/bathroom units, every corner of this expansive home is naturally lit.

Engineering Perfection

• 88mm Glulam Logs: Essential for a 20-metre structure, our laminated logs provide the structural rigidity required to prevent movement or warping over such a long span.

• Massive Roof Area: The 174m² roof is supported by heavy-duty purlins and prepared with a 100mm cavity for high-performance insulation.

• Heavy-Duty Base: Sitting on 135mm x 135mm bearers, the floor structure is built to carry the weight of a fully furnished home.

Key Features & Specifications
Below is the detailed technical specification for the Severn 20x6.8m Lodge. Note the 126m² area and the high number of internal doors and windows.

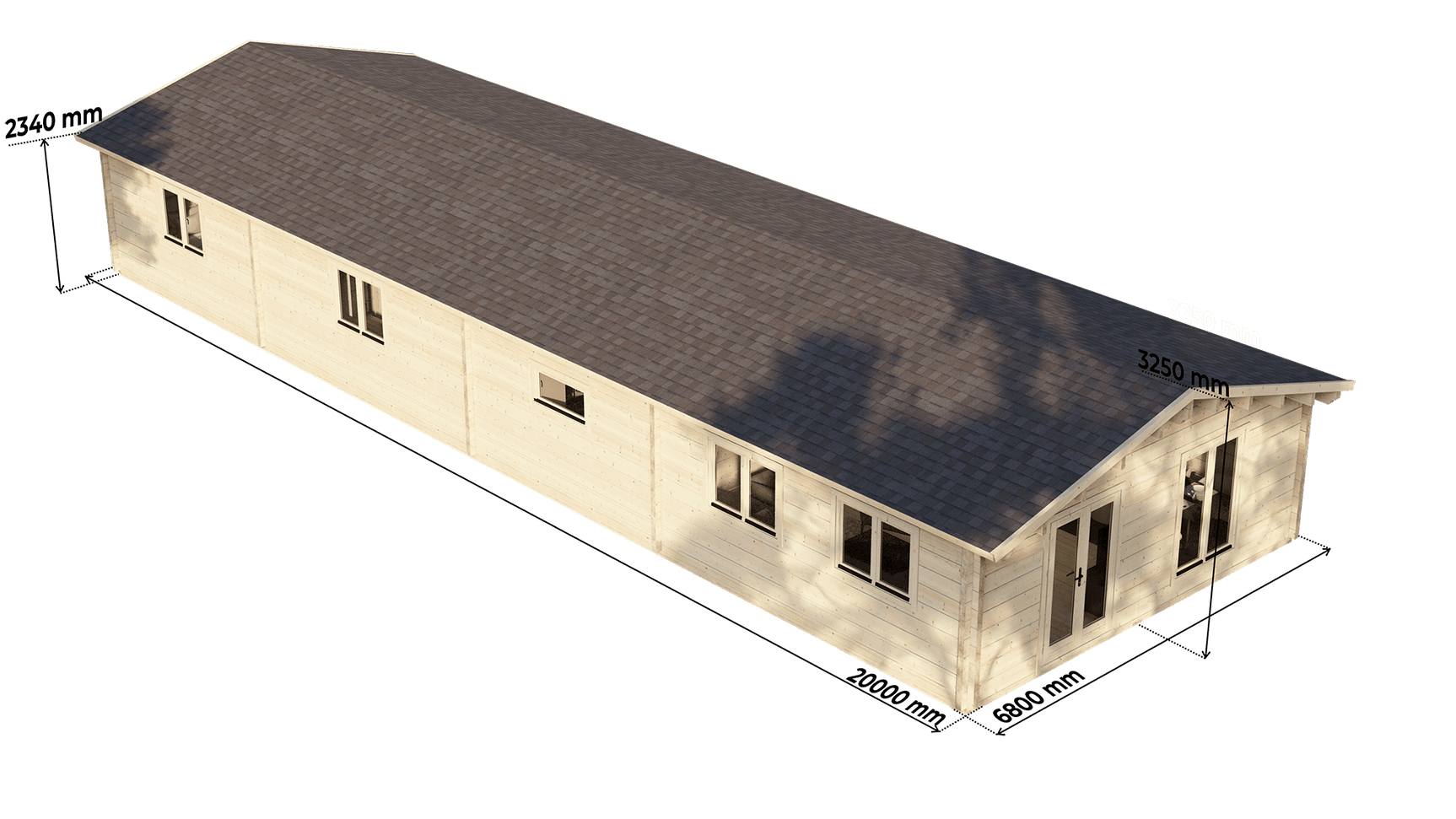

Dimensions & Area

Overall Dimensions: 6800 mm x 20000 mm (6.8m x 20m)
Internal Dimensions: 6424 mm x 19624 mm
Total Inside Area: 126.1 m² (Grand Residence)
Sidewall Height: 2340 mm
Ridge Height: 3250 mm

Construction Materials

Wall Logs: 88mm Glulam (Engineered for 20m spans)
Internal Partition Walls: 88mm Glulam
Floor Bearers: Heavy Duty 135mm x 135mm
Floorboards: 28mm Tongue and Groove

Roof Structure

Roof Pitch: 15.20°
Roof Purlins: 88mm x 260mm (7 Units)
Roof Area: 174.4 m²
Insulation Prep: Double Roof Preparation (100mm Insulation gap)

Windows & Doors (Living Type - 68mm)

Window Quality: "Living Type" 68mm Frame (Double Glazed, Pre-Painted)
Bespoke Feature Glazing: 2 Units (Large panoramic custom sections)
Large Living Window: 1 Unit (1330x1770mm)
Standard/Bedroom Windows: 8 Units (1330x990mm) – High quantity for 4 bedrooms
Kitchen Window: 1 Unit (1200x600mm)
Bathroom/Utility Windows: 2 Units (580x600mm)
Main Entrance: 1 Unit Double Full Glass Door (1400x2030mm)
Side Entrance: 1 Unit Single Full Glass Door (900x2030mm)
Internal Doors: 7 Units Solid Wood Doors (850x2030mm)

At Timber Building Specialists, we offer nationwide delivery across the UK for all our products. Our delivery vehicles are specially designed to cater to different products, and we rely on our customers to inform us of any restrictions when ordering. Generally, we require a 10ft wide clear access with a 10ft height restriction, but with our expertise and experience, we can overcome most obstacles as long as we are informed in advance. In some cases, an additional fee may be charged. Our friendly and professional staff are always available to assist you in case of any doubts, so please do not hesitate to contact us.
